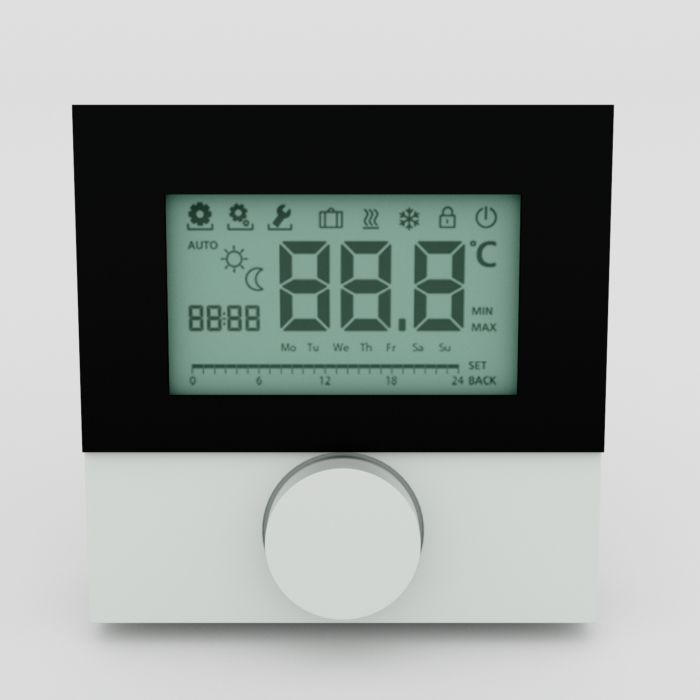

Möhlenhoff Alpha regulator direct Std. 230V, RD 20203-11N5 230V, disc
The Alpha Regler direct Display is a high-quality room temperature controller for recording and regulating the desired room temperature.
Even with directly connected actuators, simple individual room control is possible. In conjunction with the Alpha Basis direct connection unit, a perfectly coordinated overall system for surface temperature control can be implemented.
The desired room temperature is set and the unit is operated via the rotary knob with a rotary-push mechanism and soft detents. The symbols are always clearly displayed on the high-quality screen, which is easy to read and language-neutral.
The Alpha controller direct Display receives its supply voltage via the Alpha base direct or a separate voltage source.
• Flat design and small dimensions
• Control system that can be implemented standalone or within a system
• Large, clear LCD display with optional backlighting
• Equipment for heating systems
• Various operating modes
• Fixed setback differential
• Setback input for time-controlled lowering of the room temperature, for example via an external system clock
• Correction of actual temperature reading
• Target temperature limit
• Valve protection function
• Frost protection function
• Optionally available high-quality design screen made of scratch-resistant plastic
• Suitable for actuators with NC (normally closed) operation.
• Simple, intuitive installation and operation
• High operational reliability
• Maintenance-free
Operating voltage: 230 V ±10 % 50 Hz
Power supply: via base/external power supply
Protection class: IP 20
Protection class: II
Switching capacity: 2 A resistive load, 200 VA inductive load
Setting range for target temperature: 10 °C to 28 °C
Target temperature resolution: 0.25 °C
Setback temperature: 4 °C
Maximum number of actuators that can be connected: 10 (max. 3 W/actuator)
Connection terminals: 5 screw terminals – 0.22 mm² to 1.5 mm²
Material: ABS
Color: black and white
Dimensions (W x H x D): 86 x 86 x 31 mm
ß
• OEM Alpha controller direct display in individual packaging
• Instructions in 12 languages
