Boiler connection system " Regumat S-180"

  • Article number 1357070
  • DN 25
  • without pump
  • with pump ball valve
  • Universal insulation
  • Faucet group for the connection of the boiler to the piping systems
  • with universal, modular heat insulation
  • Commercially available Pumps (DN 25, length 180 mm, G 1½ AG) can be installed.
  • In delivery state, the flow is right,
    Supply and return can, however, be individually exchanged on site
  • The actuator is mountable without Construction tools "Plug & Play" principle

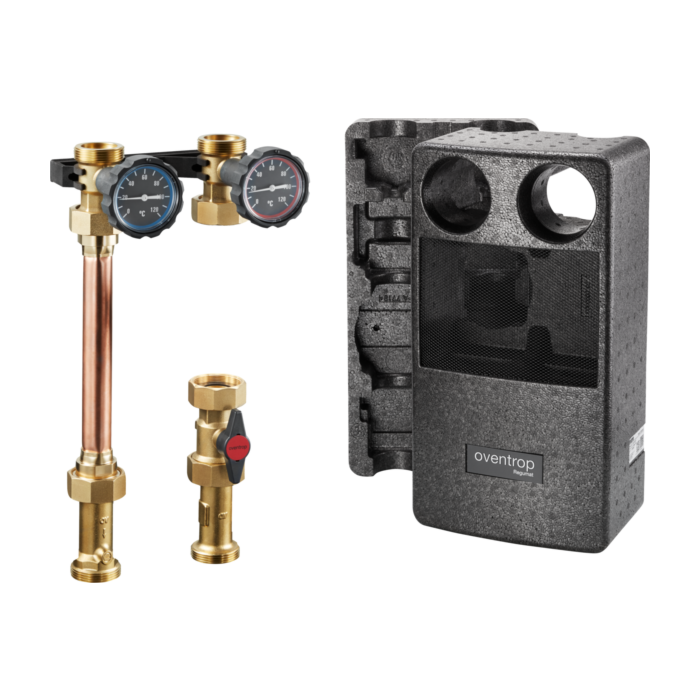

Consisting of
  • Shut-off device with 2 ball valves
  • 2 thermometers (without overflow device)
  • wall mount
  • flanged
  • thermal insulation
  • check valve
  • Pump ball valve in front of the pump
suitable for the installation of the following high-efficiency pumps:
  • Wilo - Yonos PARA
  • Wilo - Stratos PICO 25 / 1-4 / 6
  • Wilo - Stratos ECO 25 / 1-5
  • Grundfos ALPHA 25-40 / 60
  • Laing Ecocirc series
  • Biral AX 13-1
Technical specifications:
  • Thermal insulation: 248 x 465 mm
  • Center distance: 125 mm
  • Fitting length: 411 mm
  • Heating circuit side: G 1½ AG flat sealing
  • Boiler side: G 1½ AG flat sealing
  • Max. Operating temperature: 95 ° C for high efficiency pumps
  • Nominal diameter: DN 25
  • Max. Operating pressure: PN 10



Downloads (1) Chevron Down

Product Safety Chevron Down

Manufacturer
Oventrop GmbH & Co. KG
E-Mail
mail@oventrop.com
Address
Paul-Oventrop-Straße 1
59939 Olsberg
Germany
