Oventrop

Oventrop Hycocon ATZ 1067304 DN15, 1/2" internal thread shut-off valve, incl. insulation

Be the first to review this product
€27.45
instead of €35.69 **
-23% You're saving €8.23
Incl. 19% VAT , plus shipping costs
In Stock delivery time: 1-3 working days
Shipping Cost Points: 50
Questions about the article?
+49 2405 4951010
Add to Wishlist

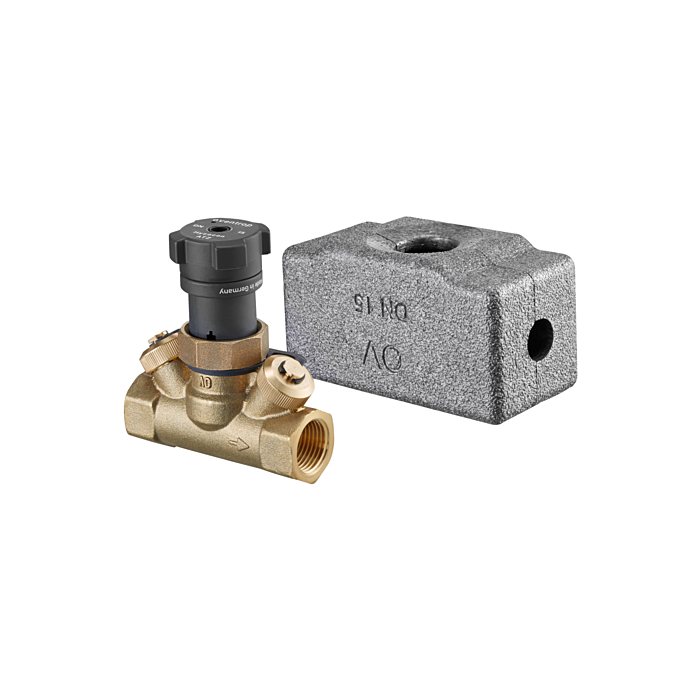

main product photo

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details Chevron Down

Oventrop shut-off valve Hycocon ATZ 1067304

Hycocon ATZ DN15, 1/2" IG, with measuring and drain valve, OVENTROP "Hycocon ATZ" brass balancing valve without presetting. Balancing valve with threaded connection according to DIN 2999, from -20°C to 120°C, in a straight-seat design. Valve body and head made of brass, other wetted parts made of dezincification-resistant brass (Ms-EZB), cone with PTFE soft seal, maintenance-free stem seal with double O-ring. Measuring and drain valve on the downstream side of the valve (connection for pulse line of a differential pressure regulator). Installation in the flow and return lines. Insulation for temperatures up to 80°C included in the scope of delivery (as packaging); optional separate insulation up to 120°C available as an accessory. Insulation can be used for cooling applications with additional polystyrene shells. Max. operating temperature: 120°C. Max. operating pressure: 16 Bar manufacturer: FW OVENTROP GmbH & Co. KG, Olsberg

Downloads (1) Chevron Down

pdf
oventrop-1067304-produktdatenblatt.pdf
(Size: 660.9 KB)

Product Safety Chevron Down

Manufacturer
Oventrop GmbH & Co. KG
E-Mail
mail@oventrop.com
Address
Paul-Oventrop-Straße 1
59939 Olsberg
Germany
