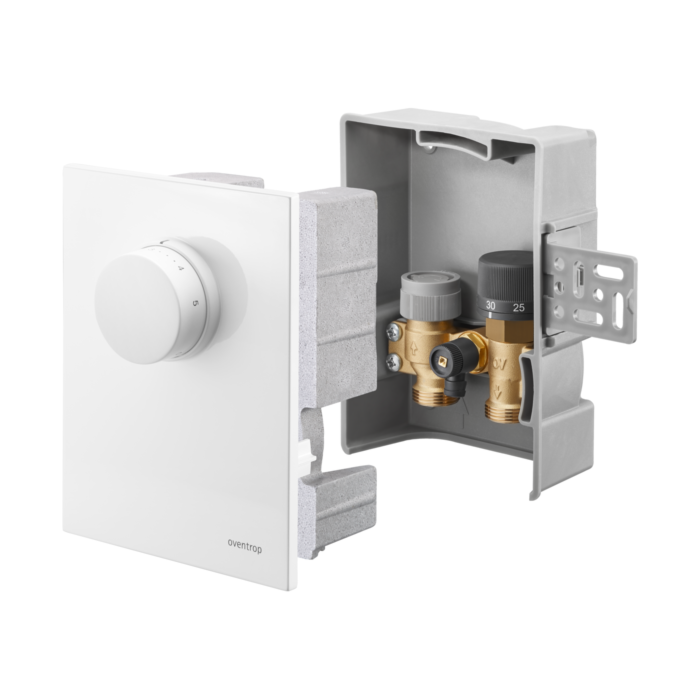

Oventrop Unibox Temperaturregler 1022739 white, for room and return

Oventrop Unibox Temperaturregler 1022739

• for combined use in heating systems with radiator operation
• consisting of: Wall installation box with pre-adjustable thermostatic valve with valve insert "QA"
• Integrated return temperature limiter
• Vent and flush valve
• Valve insulation
• Cover with integrated thermostat
• for integrating surface temperature control in central heating systems with closed circuits
• for operation with non-aggressive
• harmless liquids
• max. operating pressure ps: 10 bar (PN 10)
• Operating temperature ts: 2-100 °C
• Setpoint range: 7-28 °C (room temperature) 20-40 °C (return temperature)
• Cover with integrated thermostat for angle and depth compensation
• Valve with G 3/4 pipe connection according to DIN EN 16313 (Eurocone)
• corresponds to the Energy Saving Ordinance (EnEV)
• Plastic cover 155 x 210 x 6 mm
• white 155 x 210 x 8 mm
