Oventrop Unibox Temperaturregler 1022782 R-Tronic real glass, white, for room and return
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 1022782
Details

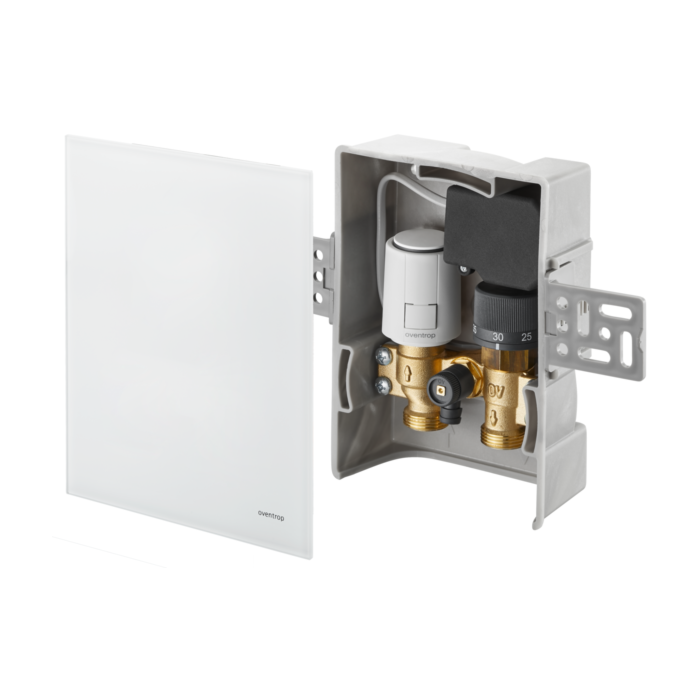

Oventrop Unibox Temperaturregler 1022782
- for combined use in heating systems with radiator operation
- consisting of: wall box with presettable thermostatic valve with valve insert "QA"
- integrated return temperature limiter
- Vent and flush valve
- Valve isolation
- Cover with integrated thermostat
- for the integration of a surface temperature control in central heating systems with closed circuits
- for operation with non-aggressive
- non-hazardous liquids
- Max. Operating pressure ps: 10 bar (PN 10)
- Operating temperature ts: 2-100 ° C
- Setpoint range: 7-28 ° C (room temperature) 20-40 ° C (return temperature)
- Cover with integrated thermostat for angle and depth compensation
- Valve with G 3/4 pipe connection according to DIN EN 16313 (Eurocone)
- corresponds to the Energy Saving Ordinance (EnEV)
- Cover real glass 155 x 210 x 6 mm
- white 155 x 210 x 8 mm
