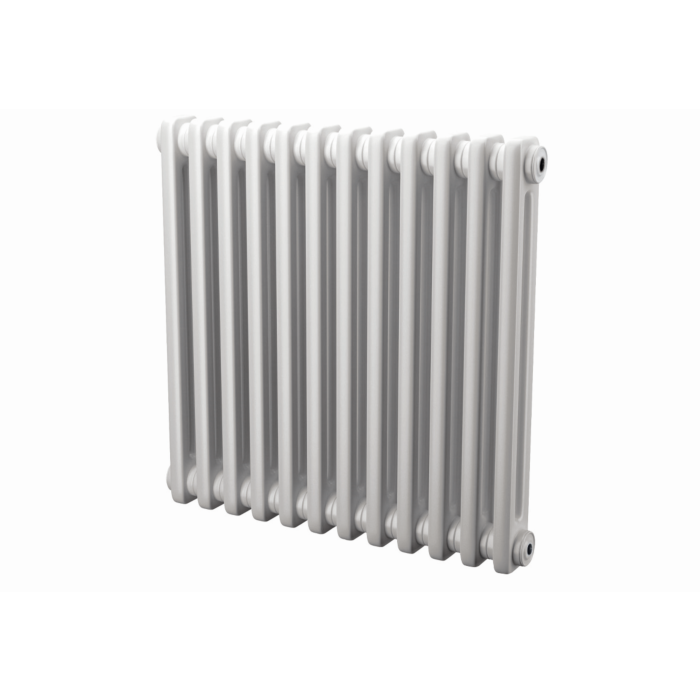

Purmo Delta tubular radiator F9014036540 BH 365 mm, BL 2000 mm, 40 sections, 4 columns

Purmo Delta tube radiator F9014036540

• Completely laser welded
• Pipes and end pieces in the delta profile are flattened on the outer sides to increase heat output.
• Hub spacing and link length (50 mm link spacing)
• 1" hub
• Delivery in one block up to a length of approx. 2100 mm is possible.
• For the welded covers, an additional 2 x 4 mm must be taken into account for the overall length.
• Delivery without mounting and connection materials
• Coating according to DIN 55 900
• with electrophoretic primer and powder coating in RAL 9016
• Operating pressure 10 bar
• Test pressure 13 bar
• Maximum operating temperature 110 °C
• Connection options: with 4 welded 1/2" side covers
• For downward or upward connections, only G 1/2 sockets are used.
