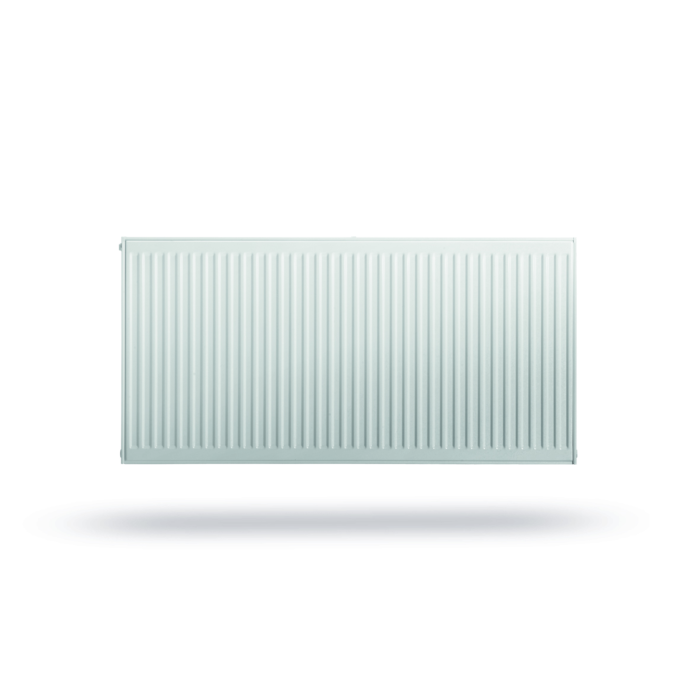

Purmo flat radiator Compact F06220501801030
- Connections 4x G 1/2
- ISO 228
- laterally
- Installation depth 102 mm
- Mounting with quick-mount set (up to BL 1600 mm radiators with 4 tabs)
- from BL 1800 mm with 6 tabs
- Radiator fully assembled with decorative cover and side panels
- Up to a length of 1600 mm with 2 fixings
- from a length of 1800 mm with 3 fixings
- complete with screws and dowels
- Self-sealing blanking and venting plugs included
- Sheet metal quality FeP0 1 according to EN 10130
- Nominal sheet thickness according to the requirements of DIN EN 442-1
- Front profiled with 33 mm groove spacing
- Operating pressure 10 bar
- Test pressure 13 bar
- Coating according to DIN 55900
- KTL primer
- Deck layer made of epoxy resin powder
- Color RAL 9016 Traffic White
- Packaging with cardboard edge protection strips along the long sides
- Protective corners and shrink film
