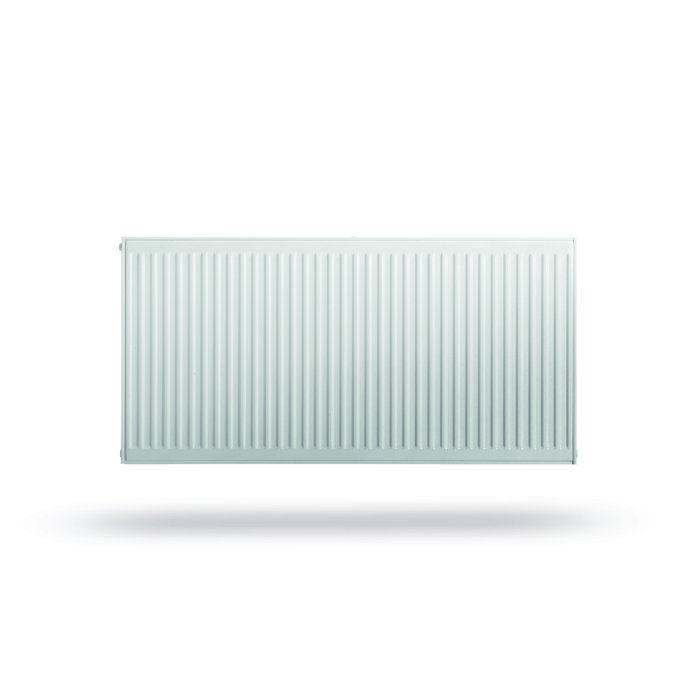

Purmo flat radiator FM4210900701030
- Connections 4x G 1/2
- ISO 228
- laterally
- 2x G 1/2
- ISO 228
- center bottom
- Spacing 50 mm
- Uniform connection dimension of 65 mm (distance from the finished wall to the center of the connection sleeves)
- Valve pre-installed on the right as standard
- On-site installation on the left is possible
- Left lead
- Return right
- Installation depth 70 mm
- Mounting with quick-mount set (up to BL 1600 mm radiators with 4 tabs)
- (from BL 1800 mm with 6 tabs)
- Radiator fully assembled
- with decorative cover and side panels
- Up to a length of 1600 mm with 2 fixings
- from a length of 1800 mm with 3 fixings
- complete with screws and dowels
- Valve insert 1/2" as well as blanking plugs and special vent plugs are factory-fitted.
- Sheet metal quality FeP01 according to EN 10130
- Nominal sheet thickness according to the requirements of DIN EN 442-1
- Front profiled with 33 mm groove spacing
- Operating pressure 10 bar
- Test pressure 13 bar
- Coating according to DIN 55900
- KTL primer
- Top layer made of epoxy resin powder
- Color RAL 9016 Traffic White
- Packaging with cardboard edge protection strips along the long sides
- Protective corners and shrink film
