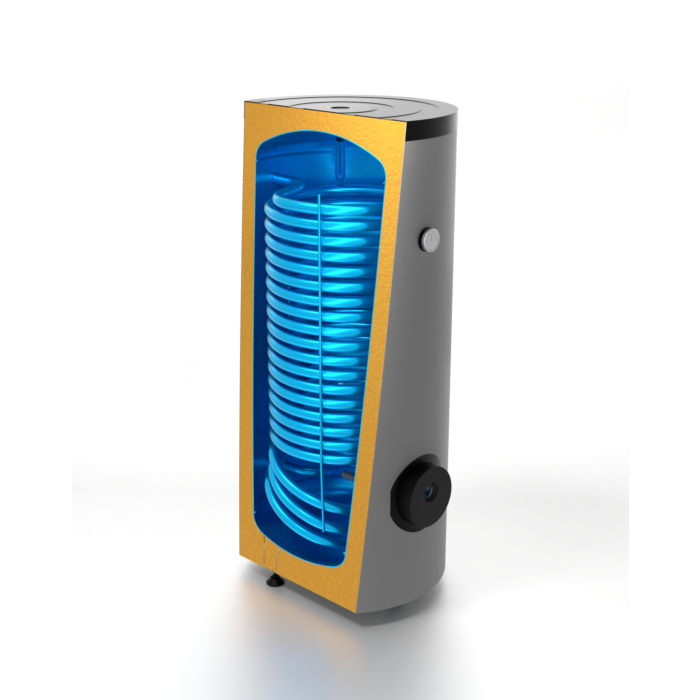

Riberger FISH S15 buffer tank 200 liters – Compact heat storage tank for heat pumps
Small but powerful: The FISH S15 200 l Speicher offers a reliable and hygienic hot water solution for smaller heat pump systems. Thanks to its large smooth-tube heat exchanger and high-quality PU insulation, it is perfectly suited to modern energy standards – ideal for smaller households, apartments, or energy-efficient new buildings.
Technical data:
- Storage volume: 200 liters
- Material: Quality steel S235JR, enamelled inside according to DIN 4753
- Corrosion protection: High-quality enamel + 2 magnesium anodes
- Heat exchanger area: 3.2 m²
- Heat exchanger capacity: 17.6 liters
- Max. operating temperature ( Speicher / Wärmetauscher ): 95 °C / 110 °C
- Max. operating pressure ( Speicher / Wärmetauscher ): 10 bar / 16 bar
- Insulation: 50 mm PU rigid foam, firmly foamed (CFC-free)
- Outer jacket: PVC jacket, color gray
- Inspection opening: Ø125/179 mm
- Electronics - heating element connection: 2000 ½" IG
- Connections:
- match3 ">Cold/Hot water: 2000 " IG
- match3 ">Circulation: ¾" IG
- match3 ">Heat pump flow/return: 2000 " IG
- match3 ">Sensor connections: ½" IG
- Dimensions:
- match3 ">Diameter with insulation: 607 mm
- match3 ">Diameter without insulation: 500 mm
- match3 ">Height / Diagonal: 1264 mm / 1351 mm
- Weight (empty): approx. 106 kg
Features & Benefits:
- Space-saving & efficient: Compact design with full performance – ideal for small technical rooms
- Heat pump optimized: Large smooth tube Wärmetauscher for high efficiency even at low flow temperatures
- Hygienic & safe: Enamelling + magnesium anode provide long-lasting protection against corrosion
- Energy-saving: Effective PU insulation for minimal heat loss
- Compatible & expandable: Ideal in combination with PV heating element or fresh water station
Areas of application:
- Heat pump systems in apartments or small single-family houses
- Hot water preparation with solar support or electric heating element
- Modernization or new construction with little space requirement
- Ideal for small households with high hygiene standards
With the FISH S15 200 l Speicher you get a high-quality, durable and space-saving solution for your hot water system – compact and efficient at the same time.
Tip: Even when space is limited, the Speicher can be perfectly combined with a PV system or fresh water station.
Order the FISH S15 200 l buffer tank now and store warm water in a space-saving manner!
A high-voltage connection (3~/400V) is required. Approval from the local grid operator may be required. Installation by qualified personnel only.
