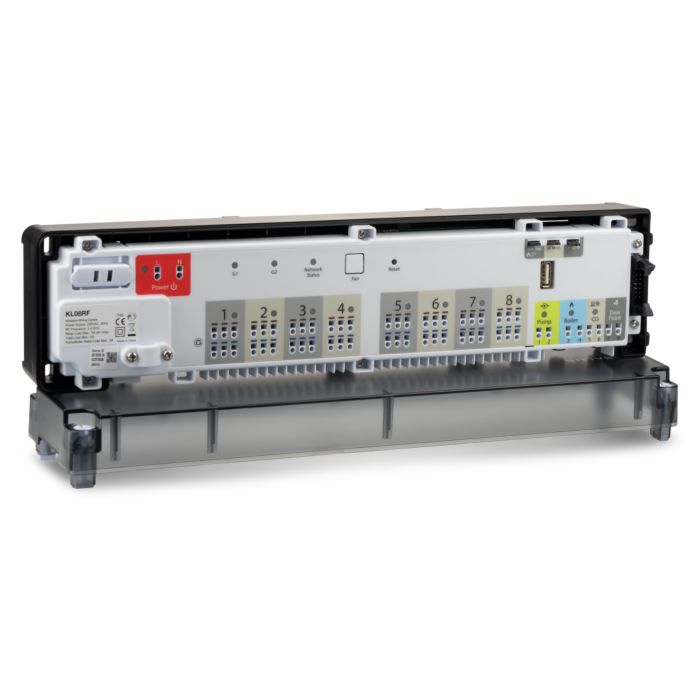

SALUS 8-zone wireless control terminal block 230V 132801
- The wireless terminal block is ideal for renovations
- because the signal is transmitted wirelessly and therefore no chiseling or painting work is necessary
- on the
- included USB coordinator
- The following Take wireless room thermostats can be connected: 113610, 113611 and 112603
- Terminal block for up to 8 room thermostats and up to 24 actuators (8 zones with 3 heating circuits each)
- There is a replaceable fuse with 12.5 A
- Each zone has its own LED for status display
- This allows the status of the heating system to be checked very quickly and any malfunction can be detected within a very short time
- the cover is transparent
- so that the LEDs can be recognized without opening the lid
- Installation is carried out via wall mounting (screws and dowels included in delivery) or via a top hat rail (provided by customer)
- There is a separate strain relief for each of the Stellantriebe connection cables
- In addition to the 8 zones, the terminal block has a built-in pump logic module (potential-free)
- a burner logic module (potential-free)
- Connection for the CO input signal of the heat pump (potential-free) and a connection for a dew point monitor
- The burner logic module can be switched off immediately or with a delay of 15 minutes
- There is a connection for an external antenna (08RFA optional) to increase the range of the terminal block
- In addition, the potential-free connections of the Pumps or burner logic module can be used for normally open Stellantriebe
- can be changed using a jumper
- The wireless terminal block can be integrated into the Cloud at any time via the Universal Gateway (optional)
- the radio system becomes a SMART system
- When using the gateway, the USB coordinator must be removed from the terminal block
- Dimensions: 355 x 85 x 70 mm
- Weight: 740 g
- Protection class: IP20
- Mounting: screws and DIN rail
- Operating voltage: 230V / 50Hz
- Radio frequency: 2
- 4 GHz Max.
- Ambient temperature: +50°C
- Cable connections: Spring-loaded
- Cover: Transparent
- Protection: Fuse 12
- 5A (replaceable)
