Details

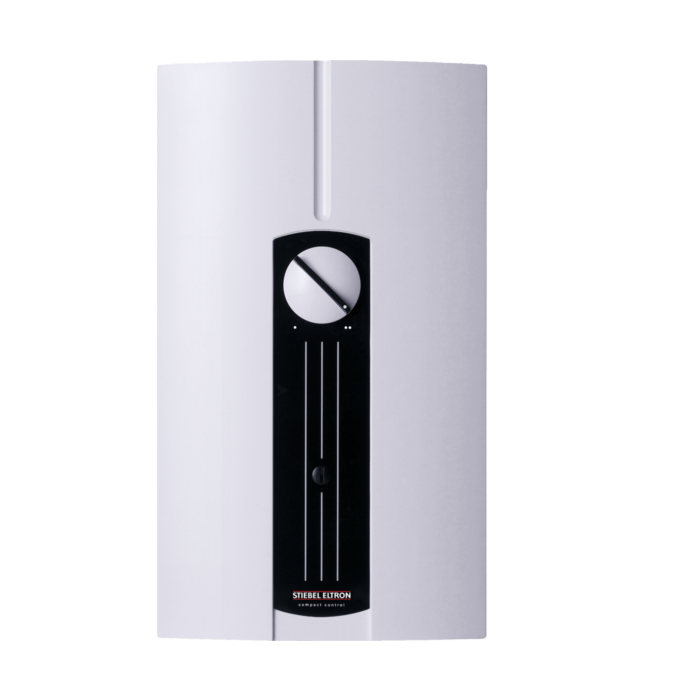

Stiebel Eltron DHF 13 compact hydraulic Durchlauferhitzer

  • Item number: 074301
  • 13 kW
  • hydraulically controlled
  • pressure resistant
  • Durchlauferhitzer
  • 370 x 220 x 130 mm
  • Power selector to lock the large power level
  • extensive compensation of pressure fluctuations through Comfort valve
  • 400 V.
  • EEK: B
  • Power connection (3 ~ / 400V) required. The approval of the local network operator may be required. Installation only by qualified specialists.

Technical Data

Technical Data
color/ surface White
length 37
width 220 mm
depth 130 mm
height 370 mm
product class Heater
service manually
Mounting type Over sink / under table
IP protection) IP24
current 19.5 A.
Printing closed
Nominal diameter of cold drinking water 1/2 inch
Nominal diameter of the hot water connection 1/2 inch
Max. Permissible operating pressure 10 bar
rated capacity 13.2 kW
Connection to cold drinking water external thread
Hot water connection external thread
With tap No
Pipe outside diameter cold drinking water 21.5 mm
Pipe outside diameter of warm drinking water 21.5 mm
power consumption 13.2 kW
Weight 4.1 kg
nominal capacity 0.6 l
Supply voltage 400 V.
Type of scheme hydraulic
Nominal voltage 1 400 V.
safety shutdown pressure switch control
Material of the pressure vessel copper
With display No
Suitable for KNX No
temperature display without
heating system tans
Suitable for preheated water no
