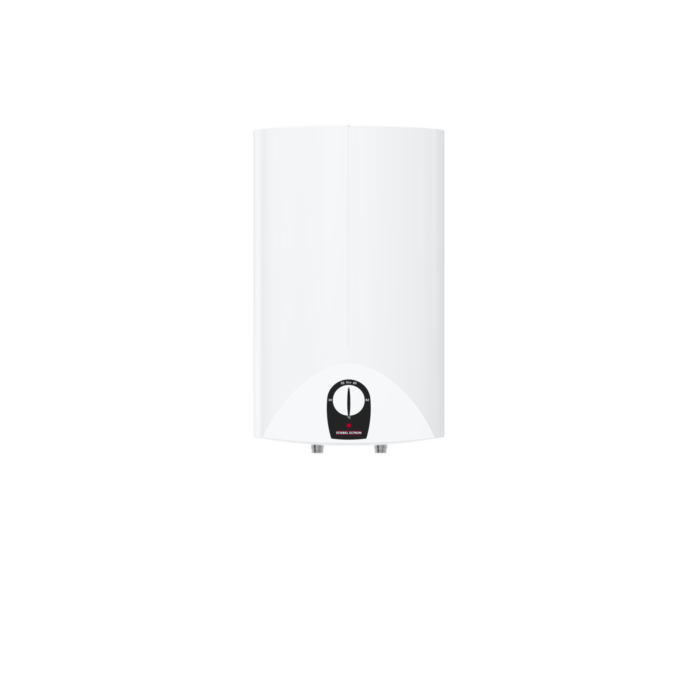

Stiebel Eltron unit 229475 SH 10 SL, 10 l, 2 kW, pressure-resistant, white

Stiebel Eltron table SH 10 SL 229475

- Article number: 229475
- Type: SH 10 SL
- Connected load 2kW
- Pressure-resistant steel inner container for SH
- Closed Warm water boilers (flameproof)
- insulated steel inner container
- for the hot water supply of several outlets
- CFC-free polystyrene foam insulation from precisely fitting molded parts (half-shell technology) with minimal heat loss.

The water content is controlled depending on the set temperature.

Stepless temperature setting from approx. 35 degrees C to approx. 85 degrees C.

Standard temperature limitation of the selector knob turning range to 45, 55 or 65 degrees C, heating indication by signal lamp, exchangeable copper heating flange, safety earth limiter, automatic frost protection with device switched off.

Connection cable with earthing contact plug are included in delivery.

Plumbing in conjunction with the Sicherheitsgruppe KV 307 ( mit Druckminderer ) or KV 40.

- Quality and safety mark: VDE / GS mark, radio protection mark, IP 24 (splash- 1930 ) Technical data: 1930 2, 1930 kW Nominal capacity 10 l Connection 1 / N / PE 230 V Water connection G1 / 2 Mixed water quantity 40 degrees C 19 l Standby power consumption included 65 degrees C / 24h flow rate max. 10, 1930 l / min nominal pressure 7, 1930 bar inner container steel type closed outer casing plastic color white
