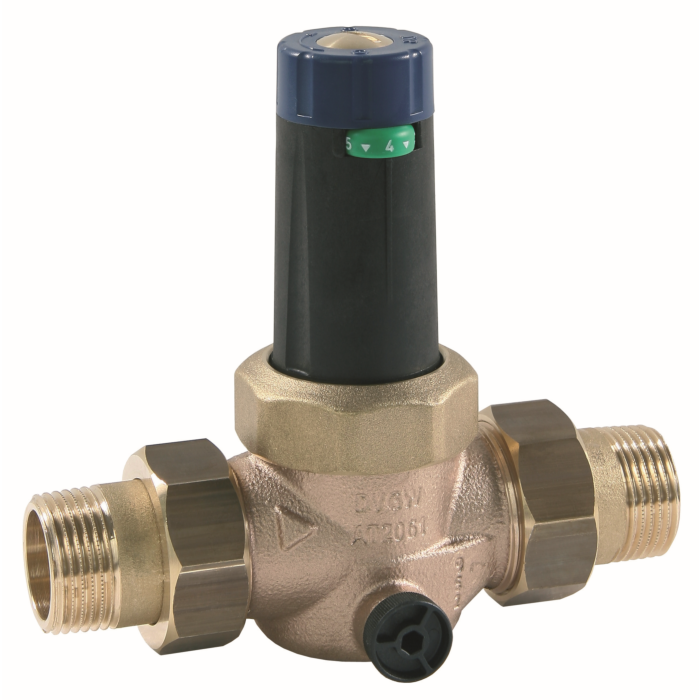

SYR pressure reducer 315

Product details:
- Article number 031532000
- Durh River DN32
- Output pressure 1.5 - 6 bar (factory setting 4 bar)
- Mounting position arbitrary
- Max. Operating temperature 30 ° C
- Max. Operating pressure 25 bar
- Medium water, compressed air, neutral non-adhesive
Liquids, neutral gases
- ABP-No. P-IX 7635 / l
- with two-sided screw connections
- with outlet pressure gauge
- DVGW approved
- Soundproofed in class 1.
- Gunmetal



DN 32, 1,5-6bar, gunmetal reducer 315 With screw connections on both sides and strainer. Manometer nozzle on both sides G1 / 4. DVGW approved. Soundproofed in class 1 (DN 15 to DN 32). Body made of red brass, cap made of glass fiber reinforced plastic. Outlet pressure adjustable from 1.5 to 6 bar. Factory pre-set to 4 bar. Inlet pressure max. 16 bar. Application: Water up to max. 30C, compressed air, gases and non-adhesive, non-aggressive media. Reduction ratio max. 10: 1. With outlet pressure gauge. Installation position arbitrary. DN 32.

Technical Data

Technical Data
Material Rotguss
color/ surface White
length 17,5 cm
width 19,1 cm
inch size connection 1 1/4"
height 175 mm
product class pressure reducer
Article compression stage PN 16
model 315
Nominal diameter DN 32
UBA positive list Yes
surface protection untreated
With couplings No
Max. Form 16 bar
With pressure gauge No
connections External thread (metric)
Reduced pressure 1.5 - 6 bar
