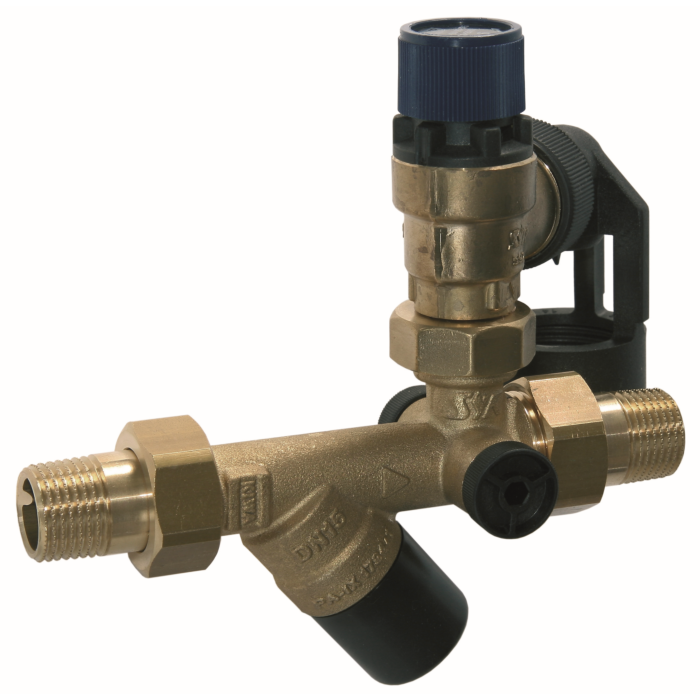

Syr Sicherheitsgruppe 24 SYRobloc DN 15, G1 / 2 10bar raw yellow SYRobloc- Sicherheitsgruppe 24, for connection of closed DHW Sicherheitsgruppe according to DIN 1988. Consisting of: Shut-off valve, Sicherheitsgruppe return valve with testing device, second shut-off valve (only DN 20), membrane safety valve and new, extendable discharge funnel. Housing made of pressed brass, cap of valve made of glass fiber reinforced plastic. Seat of the safety valve made of stainless steel. DN 15, 10 bar, gland G 1/2, rg. Component tests: DIN-DVGW tested, TÜV-SV-10-545, sound insulation test number PA-IX 1794 / I.

Technical Data

Technical Data
inch size connection 1/2"
product class security group
Article compression stage PN 10
model SYRobloc 24
Nominal diameter DN 15
series SYRobloc 24
Housing material Brass
UBA positive list Yes
connection external thread
surface protection untreated
Max. Boiler output 75 kW
With couplings No
With crimp set No
With siphon No
