TIP Maxima 350 IPX DUO S Anti-Flood Kit 30711
Prepare yourself optimally for flood situations - with the "TIP Flood Set Maxima 350 IPX DUO S"!
Our complete set offers you everything you need to respond effectively to flooded basements and rooms. The set includes the specially designed Maxima 350 IPX DUO submersible dirty water pump, a practical filter basket and a tear-resistant fire hose with Storz coupling.
The Maxima 350 IPX DUO is an extremely reliable combination submersible pump that can be converted from a powerful dirty water pump into a shallow suction clear water pump in a matter of seconds. Thanks to its extendable pump base, it is a real all-rounder among submersible pumps. The filter basket reliably holds items of clothing, books and other objects while the pump does its job without interruption with an impressive flow rate of 20,000 liters per hour. Without the filter basket, the pump is also suitable for dirty water with dirt particles up to 30 mm in size.
Prepare for emergencies and secure the "TIP Flood Set Maxima 350 IPX DUO S" for effective flood control!
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all the Ersatzteile you need for up to a decade after the date of purchase.

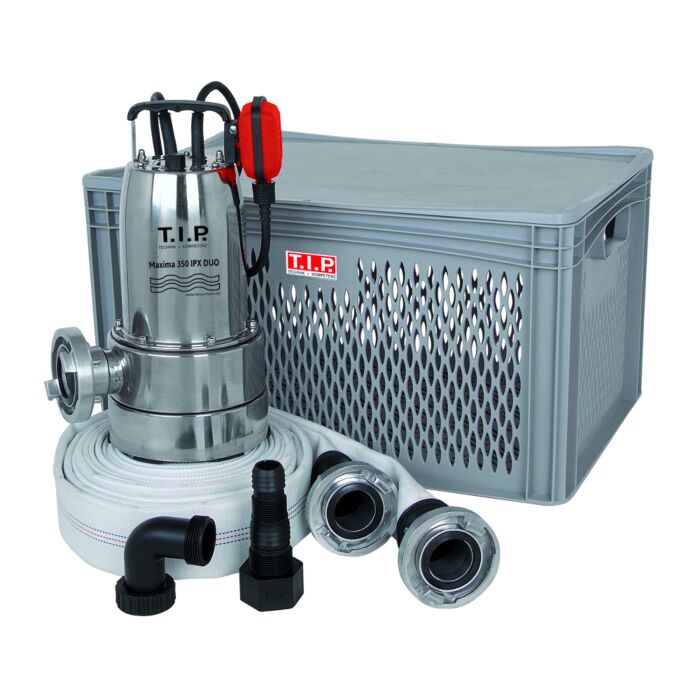

Scope of delivery:
- Pump Maxima 350 IPX DUO
- filter basket
- 15 m tear-resistant fire hose with C-Storz coupling
Technical data pump:
Motor: 800 watts
Voltage / Frequency: 230 V~ / 50 Hz
Delivery head / pressure max.: 8 m / 1930 ,8 bar
Flow rate max.: 333 l/min / 20,000 l/h
Pump housing: stainless steel
Pressure connection: 47.8 mm ( 2000 ½" AG)
Temperature max. medium: 35 °C
Connection cable: 10 m / H07RN8-F
Grain size max.: 30 mm
Max. immersion depth: 7 m
Minimum extraction level: 2000 - 35 mm
Fabric hose with Storz coupling:
Hose length: 15 m
Connection input and output: C-Storz coupling
Working pressure: 10 bar
Wall thickness: 1930 ,9 mm
Diameter: Ø 52 mm (2")
Connection between hose and pump:
Connection Art : C-Storz coupling
Connection size: 45.48 mm ( 2000 ½" IG)
Delivery head / delivery rate:
Wastewater operation:
7 m – 4,200 l/h
5 m – 10,000 l/h
4 m – 12,200 l/h
3 m – 14,700 l/h
2000 m – 19,300 l/h
Clear water operation:
7 m – 4,500 l/h
5 m – 9,700 l/h
4 m – 12,000 l/h
3 m – 14,000 l/h
2000 m – 17,000 l/h
The flow rate of a pump depends mainly on the discharge head. The table above shows the performance of the Maxima 350 IPX DUO submersible dirty water pump at different discharge heads. Example: If you pump water from a depth of 3 meters, this pump with a flow rate of 14,700 liters per hour (waste water operation) is to be expected.
