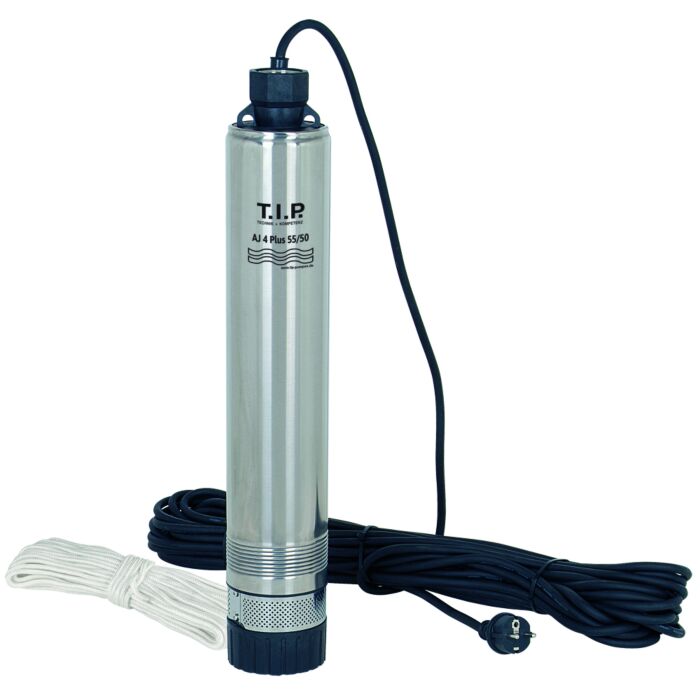

TIP AJ 4 Plus 55/50 well pump - deep well pump 30104
AJ 4 PLUS 55/50: Powerful and efficient for deep wells
The AJ 4 PLUS 55/50 is not just a deep well pump - it is a masterpiece of engineering. Its high-quality stainless steel pump housing and multi-stage pump drive make it one of the most powerful and energy-efficient Pumps on the market.
This pump is specially designed to pump water from great depths. What makes it stand out is its sand resistance. It can easily handle water containing up to 50 g/m³ Sand . This means that it can be used in environments where other Pumps would fail.
What makes the AJ 4 PLUS 55/50 truly unique is its slim outer diameter of just 9.6 cm. This allows it to be used even in narrow boreholes with a diameter of just 10 cm. Its versatility in the Plumbing makes it a first-class choice for different environments.
This pump is not only a feed pump, but also a reliable companion for the transfer of water at high pressure. Its integrated check valve ensures that the pumped water only flows in the desired direction. With 7 floating impellers, it pumps the water efficiently and handles large amounts of water without any problems.
Rely on the AJ 4 PLUS 55/50 when you need a powerful, reliable and sand-resistant deep well pump. It brings the water reliably and efficiently to where it is needed.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all the Ersatzteile you need for up to a decade after the date of purchase.
Scope of delivery:
- lowering rope 21 m
Technical data:
Max. flow rate: 3,000 l/h
Max. delivery head / max. pressure: 50 m / 5, 1930 bar
Rated power: 800 watts
immersion depth max.: 20 m
Pressure connection: 39.59 mm ( 2000 2000 /4" IG)
Maximum number of sprinklers: 3
Delivery rate and delivery head:
40 m – 950 l/h
30 m – 2000 .750 l/h
20 m – 2,100 l/h
10 m – 2,600 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water extraction. The table above shows the performance of the deep well pump AJ 4 Plus 55/50 at different delivery heads. At a delivery head of 30 meters, this For example, a pump with a flow rate of 2000 litres per hour can be expected.
