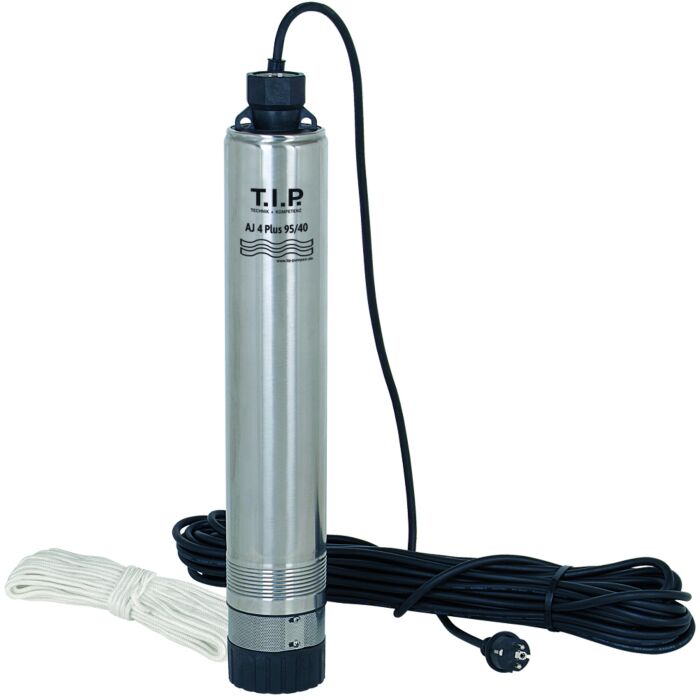

TIP AJ 4 Plus 95/40 well pump - deep well pump 30177
AJ 4 PLUS 95/40: Reliable deep well pump for large water quantities
The AJ 4 PLUS 95/40 is the answer to demanding water tasks. Its properties make it the perfect choice for pumping water from great depths and conveying it at high pressure.
The heart of this pump is its stainless steel pump housing and the multi-stage pump drive. These components guarantee not only durability but also remarkable efficiency. Even in environments with sandy water up to 50 g/m³, this pump proves its reliability.
The AJ 4 PLUS 95/40 is not only strong, but also slim. With an external diameter of just 9.6 cm, it can be used with borehole diameters as small as 10 cm. This flexibility in the Plumbing is invaluable, especially in tight spaces .
The integrated check valve ensures that the pumped water only flows in one direction, allowing for controlled and efficient water flow. With 6 floating impellers from the AJ series, it can handle large volumes of water without any problems.
If you are looking for a deep well pump that is powerful enough to pump water from great depths while maintaining an impressive flow rate, then the AJ 4 PLUS 95/40 is the right choice for your needs. Trust in its performance and reliability to to successfully manage your water tasks.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all the Ersatzteile you need for up to a decade after the date of purchase.
Scope of delivery:
- lowering rope 21 m
Technical data:
Max. flow rate: 5,500 l/h
Max. delivery head / max. pressure: 40 m / 4, 1930 bar
Rated power: 900 watts
immersion depth max.: 20 m
Pressure connection: 39.59 mm ( 2000 2000 /4" IG)
Maximum number of sprinklers: 5
Delivery rate and delivery head:
30 m – 2,600 l/h
20 m – 3,900 l/h
10 m – 4,950 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water extraction. The table above shows the performance of the deep well pump AJ 4 Plus 95/40 at different delivery heads. At a delivery head of 30 meters, this For example, a pump with a flow rate of 2,600 liters per hour can be expected.
