TIP BigWell 90-53 AUT well pump - deep well pump 30084

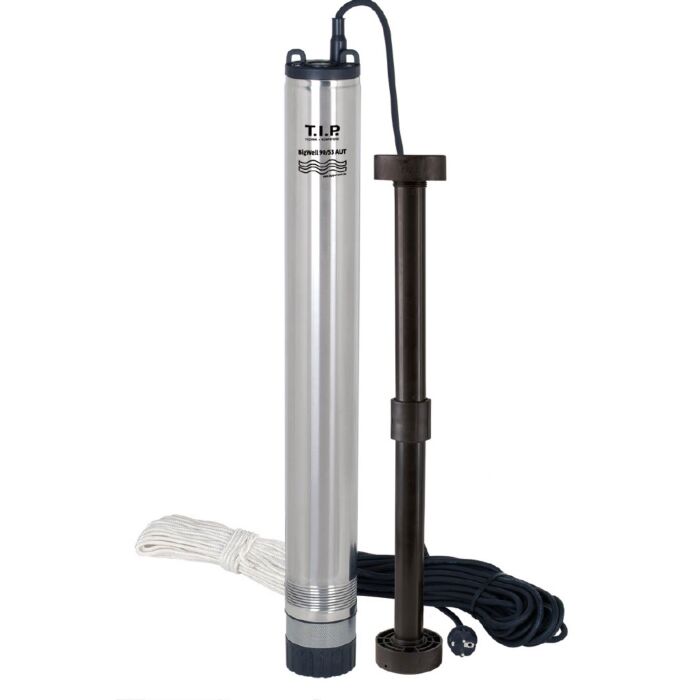

Efficient water extraction from great depths – our deep well pump Big Well 90/53 AUT with stainless steel housing
The Big Well 90/53 AUT with its robust stainless steel pump housing is the solution for efficiently pumping water from great depths. This multi-stage pump ensures that water gets exactly where you need it, in an extremely energy-efficient way.
With its slim outer diameter of just 9.6 cm, this pump is ideal for use in narrow wells with a diameter of 10 cm or more. The extendable base helps to minimize the risk of silting of the pump hydraulics, ensuring the longevity and efficiency of the pump.
Our deep well pump is equipped with an integrated electronic control system that automatically switches the pump on at a pressure of around 2000 bar. As soon as the consumers are closed and the maximum pressure is reached, the pump switches off automatically. The flow control system reliably protects the pump against damage caused by dry running.
Other features include an integrated check valve, a generous 23 m long connection cable and a drain rope that ensures optimal positioning of the pump.
Trust the BigWell 90/53 AUT deep well pump for a reliable and efficient water supply, even from great depths. With this pump, you can be sure that your water needs will be met without any problems - anytime, anywhere.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Technical data:
Rated power: 900 watts
Max. delivery head/pressure: 53 m / 5.3 bar
Max. flow rate: 5,400 l/h
Dirt particle size max.:= 2000 mm
immersion depth max.: 20 m
Kabel : 23 m / H07RN-F
Pressure connection: 30.93 mm ( 2000 " IG)
Well size min.: 100 mm
MEI: = 1930 ,40
Scope of delivery:
- lowering rope
- pump stand
Maximum number of sprinklers: 6
Delivery rate and delivery head:
50 m – 2000 .200 l/h
40 m – 2,750 l/h
30 m – 3,500 l/h
20 m – 4,230 l/h
10 m – 4,800 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water extraction. The table above shows the performance of the Big Well 90/53 AUT deep well pump at different delivery heads. For example, with a delivery head of 30 meters, this pump can expect a delivery rate of 3,500 liters per hour.
