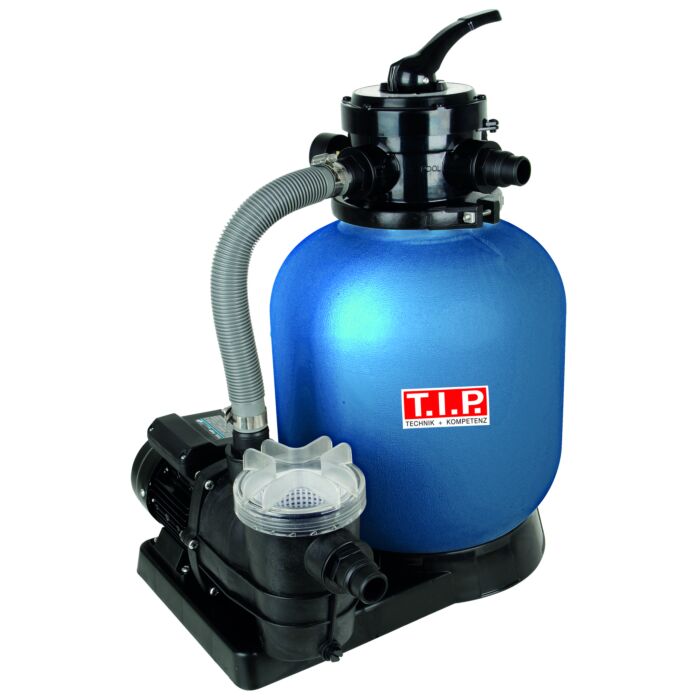

TIP SPF 370 F sand filter system 30309
TIP pool filter system SPF 370 F - Efficient solution for pool water cleaning and circulation
The SPF 370 F is a compact but powerful pool filter system that is perfect for pools of up to 40 m³. The set consists of a pump with pre-filter and a filter container with numerous important functions: filtering, backwashing (cleaning the filter), rinsing (removal of suspended matter in Sand ), winter position (opening of all Ventile to relieve the Dichtungen perfect for winter storage) The simple handling is done via a 4-way valve. We recommend an average cleaning time of approx. 8 hours per day. To maintain The pump has a high filtering capacity with low power consumption to ensure crystal-clear pool water. The set can be assembled and put into operation quickly and easily.
Note: Quartz sand is not included in delivery.
Finding the right filter system
A pump that is incorrectly sized for your Pool can be very annoying. While a system with too little power does not clean the water sufficiently, a pump that is too large consumes more electricity than necessary and costs unnecessary amounts of money.
Calculating the appropriate filter performance:
Depending on the level of use and dirtiness, the pool contents should be circulated twice a day. The recommended operating time is 8 to 9 hours per day. Smaller paddling pools in which the water stands for long periods of time can become a reservoir for germs.
The following example will quickly show you how to calculate the appropriate filter performance for your Pool .
Calculation example:
Your pool contains 20 m³ of water
20 m³ x 2 = 40 m³
45 m³ : 9 hours = 5 m³/h
Result: For a pool volume of 20 m³ you need a filter system that pumps at least 5 m³/h.
cleaning
In general, sand filters are easier to clean than cartridge filters, which either need to be rinsed or replaced. To clean a sand filter, simply set the system to "backwash".
It works like this: Normally, the dirty water flows through the Filter from top to bottom: the dirt collects mainly in the upper layers of the quartz sand.
If you now set the multi-way valve to "backwash", the system is flushed from bottom to top. The dirt is flushed out via a separate channel and the filter performance is usually optimal again.
This "rinse cycle" should be carried out at least once a week. It takes about 2 to 4 minutes. If the Pool becomes very dirty during the week, the backwash may take a little longer. Afterwards, rinse again for about a minute.
In addition, you should always backwash after cleaning the floor and/or the pool walls, as a lot of dirt is stirred up during cleaning and gets stuck in the Filter . Even if the Filter is dirty, the backwash cycle should be used.
TIP: In the so-called Manometer , the pressure in Kessel is displayed and you can see from this whether backwashing is necessary. If the pressure increases, there is greater resistance in the form of contamination in the Behälter . The Filter should be cleaned with a backwash.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all the Ersatzteile you need for up to a decade after the date of purchase.
Scope of delivery:
- Sand filter tank including base plate
- 4-way valve
- pump
- two packages with connection and installation accessories
Technical data:
Voltage / frequency pump: 220 – 240 V~ / 50 Hz
Pump flow rate max.: 13,200 l/h
Delivery head / pressure max.: 12 m / 2000 ,2 bar
Rated power P1 / P2: 550 / 370 watts
Sand filter flow rate max.: 7,000 l/h
Liquid temperature max.: 40 °C
Pool size max.: 40 m³
Sand filling quantity: 25 kg ( 1930 ,5 – 1930 ,8 / 1930 ,7 - 2000 ,2 mm grain size) or two packs of BEASAN filter balls (800 g)
Dimensions of the filter: 48 x 53 x 65 cm
Thread connection: 45.48 mm ( 2000 ½“ IG)
Hose connection: 32 mm ( 2000 ¼”), 38 mm ( 2000 ½”)
Delivery rate and delivery head:
9, 1930 m – 2,560 l/h
6, 1930 m – 6,750 l/h
3, 1930 m – 10,230 l/h
2000 , 1930 m – 11,460 l/h
The flow rate of a pump depends mainly on the discharge head. The term 'discharge head' refers to the height difference between the water surface and the water outlet. The table above shows the performance of the pool filter system SPF 370 F at different discharge heads. With a discharge head of 2000 , 1930 meters, this pump is For example, a flow rate of 11,460 litres per hour can be expected.
