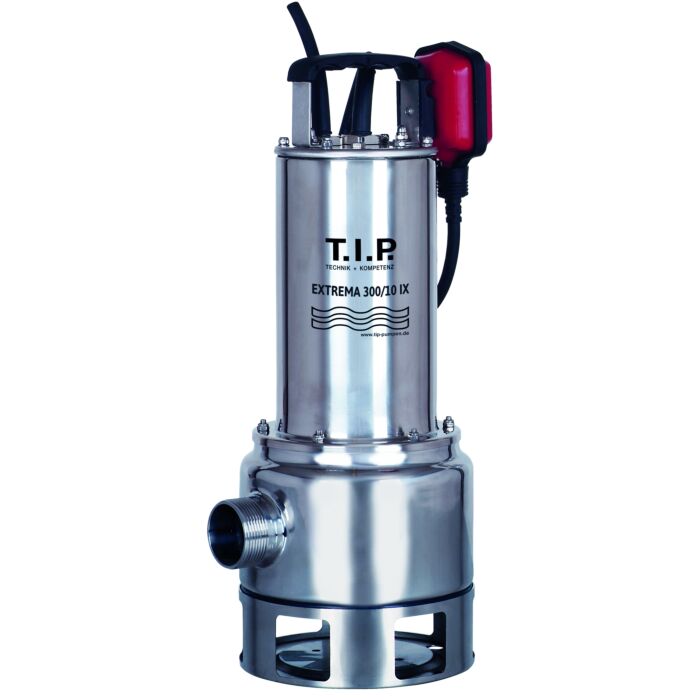

TIP Extrema 300/10 IX dirty water construction pump 30072
Extrema 300/10 IX: High performance and robustness for demanding applications
The TIP Extrema 300/10 IX dirty water construction pump is a top product with a particularly high-quality design and technology. It is equipped with a motor that offers thermal overload protection and has self-lubricating precision ball bearings, a pump housing and a cast vortex impeller made entirely of stainless steel. These high-quality materials not only ensure a long service life, but also outstanding performance.
What sets the Extrema 300/10 IX apart from other conventional submersible waste water pumps is its ability to handle liquids at higher temperatures. In normal operation, it can easily handle liquids up to 50°C, and for short periods of time up to 95°C (approx. 4 minutes). This feature makes it ideal for demanding applications where liquids at higher temperatures must also be pumped, such as washing liquor.
In addition, the Extrema 300/10 IX is equipped with a lockable float switch that allows both automatic and manual operation. This feature improves the user-friendliness and flexibility of this dirty water construction pump.
When you need top performance and robustness, rely on the Extrema 300/10 IX. This pump handles even the most demanding applications effortlessly and reliably. Invest in quality and choose this top-class pump to confidently handle your dewatering tasks and keep your environment dry and safe.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Scope of delivery:
- Connection elbow: hose 38 mm / thread 45.48 mm ( 2000 2000 /2? IG)
- Connection elbow: hose 32 mm / thread 39.59 mm ( 2000 2000 /4? IG)
- Reducer: 45.48 mm ( 2000 2000 /2? IG) – 41.91 mm ( 2000 2000 /4? AG)
Technical data:
Max. flow rate: 19,500 l/h
Max. delivery head / max. pressure: 10.5 m / 2000 bar
Rated power: 1200 watts
immersion depth max.: 7 m
Pressure connection: 47.80 mm ( 2000 2000 /2" AG)
Suction level min.: 55 mm
dirt particle size max.: 40 mm
Pumped liquid temperature max.: 35 °C
Delivery head / delivery rate:
8 m – 6,330 l/h
6 m – 9,940 l/h
4 m – 13,440 l/h
2 m – 16,650 l/h
The delivery rate of a pump depends mainly on the delivery head. The table above shows the performance of the Extrema 300/10 IX dirty water construction pump at different delivery heads. Example: If you pump water from a depth of 4 meters, you can expect a delivery rate of 13,440 liters per hour with this pump.
