TIP Extrema 400/11 CX dirty water construction pump 30168

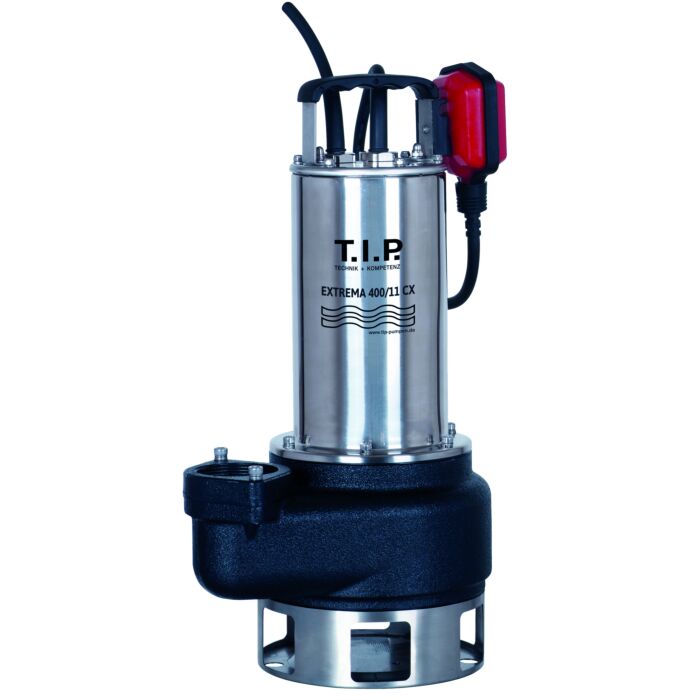

Extrema 400/11 CX: Robust dirty water construction pump with exceptional performance
The Extrema 400/11 CX is a specially designed construction pump that is characterized by exceptional robustness and an extremely high delivery rate. Its structural design with a large vertical 2" AG, the stainless steel motor housing and the extremely robust cast hydraulic unit makes it ready for the toughest use in construction and waste water pits. This pump effortlessly handles liquids with dirt particles up to 40 mm in size.
What makes the Extrema 400/11 CX special is not only its robust construction, but also its high-quality technology. It is equipped with a motor that has thermal overload protection, which ensures additional safety and durability. The self-lubricating precision ball bearings and the solid cast vortex impeller contribute to outstanding performance and ensure reliable pumping of dirty water in demanding environments.
If you need a reliable and powerful dirty water construction pump that can handle its tasks even under extreme conditions, then the Extrema 400/11 CX is the perfect choice. Trust in its robustness and technical sophistication to efficiently solve water problems even in the toughest situations.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Scope of delivery:
– including 3 connection adapters with the following connection options: Thread: 47.80mm ( 2000 2000 /2? AG) / 41.91mm ( 2000 2000 /4? AG) / 33.25mm ( 2000 ? AG) Hose connections for: 51 mm / 38 mm / 32 mm
Technical data:
Max. flow rate: 24,000 l/h
Max. delivery head / max. pressure: 11 m / 2000 , 2000 bar
Rated power: 1500 watts
immersion depth max.: 7 m
Pressure connection: 57.29 mm (2" IG)
Suction level min.: 55 mm
dirt particle size max.: 40 mm
Pumped liquid temperature max.: 35 °C
Delivery head / delivery rate:
10 m – 5,380 l/h
8 m – 11,420 l/h
6 m – 15,170 l/h
4 m – 18,470 l/h
2 m – 21,540 l/h
The delivery rate of a pump depends mainly on the delivery head. The table above shows the performance of the Extrema 400/11 PRO dirty water construction pump at different delivery heads. Example: If you pump water from a depth of 2 meters, you can expect a delivery rate of 21,540 liters per hour from this pump.
