TIP Extrema 500/13 IX dirty water construction pump 30171

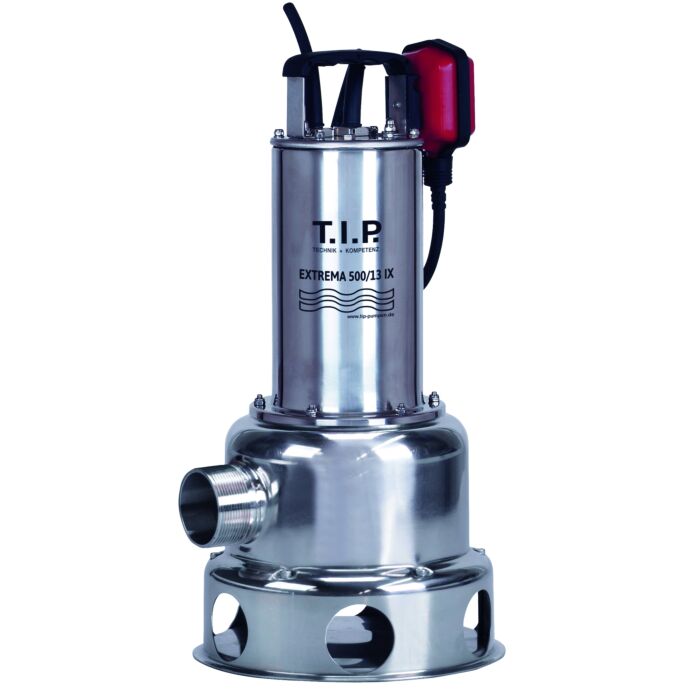

Extrema 500/13 IX: High-performance, top-class dirty water construction pump
The Extrema 500/13 IX is a top-class dirty water construction pump that is characterized by its high-quality construction and technology. Its pump housing is made entirely of stainless steel and it is equipped with a cast VORTEX stainless steel impeller. The water-cooled motor and the self-lubricating precision ball bearings make this pump suitable for continuous operation and extremely resilient.
What makes this pump special is its ability to deliver high flow rates while handling grain sizes of up to 45 mm. It is also capable of handling liquids at higher temperatures - up to 50° C in normal operation and even up to 95° C for short periods (approx. 4 minutes). This versatility makes the Extrema 500/13 IX the ideal choice for demanding construction projects where robust and reliable Pumps is required.
If you are looking for a dirty water construction pump that works reliably even under extreme conditions, then the Extrema 500/13 IX is the perfect solution. Trust in its high-quality construction and technology to pump water efficiently and powerfully, even under the most demanding circumstances.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Scope of delivery:
– Hose connection bend 2 x 57.29 mm (2? IG)
– Connection adapter 59.61 mm (2? AG) / 47.80 mm ( 2000 ½“ AG)
– Hose connection 51 / 38 mm
Technical data:
Max. flow rate: 30,000 l/h
Max. delivery head / max. pressure: 13 m / 2000 ,3 bar
Rated power: 1800 watts
immersion depth max.: 7 m
Pressure connection: 59.61 mm (2" AG)
Suction level min.: 65 mm
dirt particle size max.: 45 mm
Pumped liquid temperature max.: 35 °C
Delivery rate and delivery head:
12 m – 6,830 l/h
10 m – 12,425 l/h
8 m – 18,830 l/h
6 m – 22,950 l/h
4 m – 26,360 l/h
2 m – 29,225 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water extraction point. The table above shows the performance of the Extrema 500/13 IX dirty water construction pump at different delivery heads. For example, with a delivery head of 2 meters, this pump can expect a delivery rate of 29,225 liters per hour.
