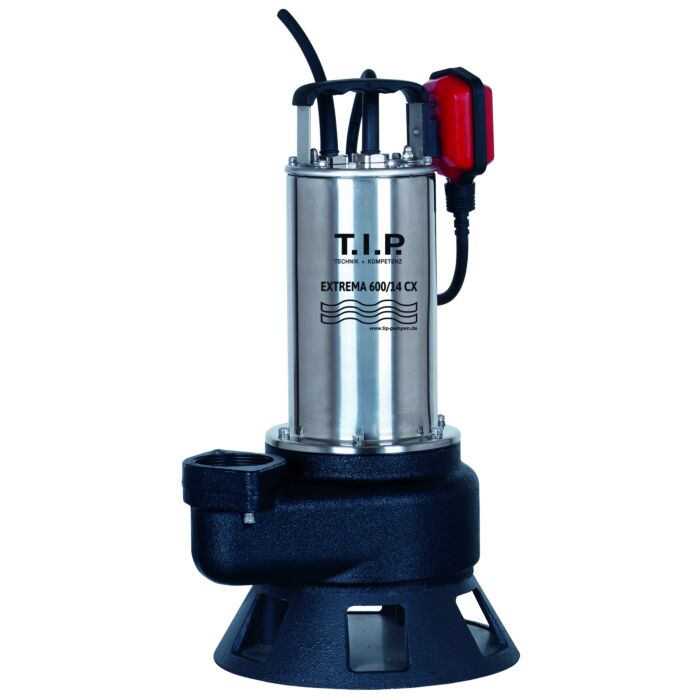

TIP Extrema 600/14 CX dirty water construction pump 30194
Extrema 600/14 CX: Extremely robust and high-performance construction pump
The Extrema 600/14 CX is a specially designed construction pump that is characterized by exceptional robustness and an extremely high flow rate. This pump is equipped for the toughest use in construction and waste water pits and can effortlessly pump liquids with dirt particles up to 50 mm.
Its design with a large 2" vertical outlet, stainless steel motor housing and extremely robust cast hydraulic unit makes it the ideal choice for demanding construction projects. The motor has thermal overload protection that ensures the longevity of the pump. The self-lubricating precision ball bearings and the solid cast vortex impeller ensure reliable and efficient performance, even under extreme conditions.
Another outstanding feature of this pump is the lockable float switch, which allows both automatic and manual operation. This versatility makes the Extrema 600/14 CX the ideal choice for various applications. In addition, it can also transport liquids at higher temperatures - up to 50°C in normal operation and even up to 95°C for short periods (approx. 4 minutes).
If you are looking for an extremely robust, reliable and powerful construction pump that delivers excellent results even in extreme conditions, then the Extrema 600/14 CX is the perfect solution for your demanding construction projects. Rely on its exceptional robustness and technology to pump water efficiently and powerfully, even in the toughest situations.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Scope of delivery:
- including 3 connection adapters with the following connection options thread: 47.80mm ( 2000 ½" AG) / 41.91mm ( 2000 ¼" AG) / 33.25mm ( 2000 " AG); hose connections for: 51 mm / 38 mm / 32 mm
Technical data:
Max. flow rate: 36,000 l/h
Max. delivery head / max. pressure: 14 m / 2000 bar
Rated power: 2200 watts
immersion depth max.: 7 m
Pressure connection: 57.29 mm (2" IG)
Suction level min.: 65 mm
dirt particle size max.: 50 mm
Pumped liquid temperature max.: 35 °C
Delivery rate and delivery head:
12 m – 10,500 l/h
10 m – 20,200 l/h
8 m – 26,700 l/h
6 m – 28,600 l/h
4 m – 30,500 l/h
2 m – 33,800 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water extraction point. The table above shows the performance of the Extrema 600/14 CX dirty water construction pump at different delivery heads. For example, with a delivery head of 2 meters, this pump can expect a delivery rate of 33,800 liters per hour.
