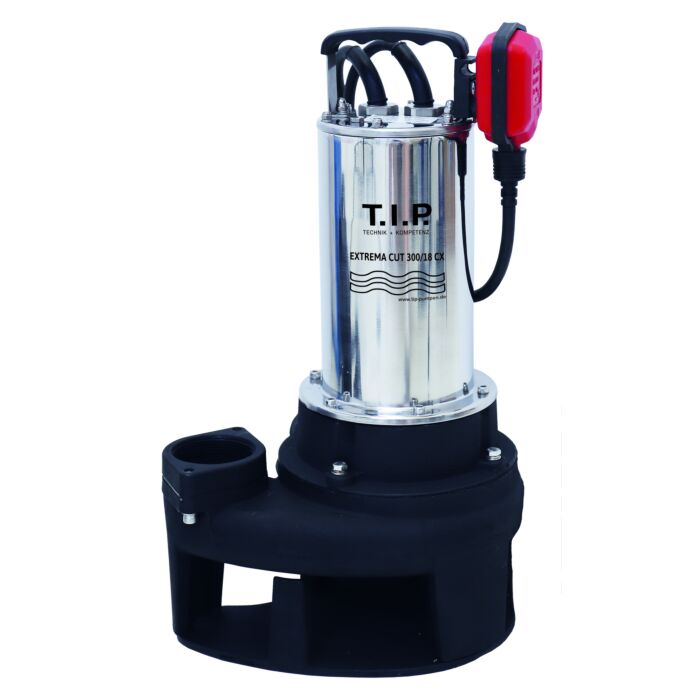

TIP Extrema CUT 300/18 CX dirty water construction pump 30277
Extrema CUT 300/18 CX: Powerful shredder pump for demanding applications
The EXTREMA CUT 300/18 CX is an outstanding chipper pump that is perfect for pumping liquids with a high solids content. Its high-performance Reamer Grinding cutting unit chops solids effortlessly and efficiently. The cutting unit is made of high-quality stainless steel (AISI 440) with an impressive Rockwell hardness of 55 (HRC), which ensures exceptional durability and performance.
Thanks to its robust design with a large vertical 2" outlet, the stainless steel motor housing and the extremely robust cast hydraulic unit, this pump is equipped for the toughest use in construction and waste water pits. Unlike conventional submersible waste water pumps, the EXTREMA CUT 300/18 CX is also suitable for transporting liquids with higher temperatures. It can withstand temperatures of up to 50 °C in continuous operation and even up to 90 °C for short periods (approx. 4 minutes).
Another outstanding feature of this pump is the lockable float switch, which allows both automatic and manual operation. This versatility makes the EXTREMA CUT 300/18 CX the ideal choice for demanding applications where efficient shredding and reliable conveying are required.
If you are looking for a powerful chipper pump that can handle high solids content in liquids and can withstand temperatures, then the EXTREMA CUT 300/18 CX is the perfect solution for your demanding applications. Rely on its exceptional performance and reliability to efficiently pump liquids, even under the toughest conditions.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Scope of delivery:
- hose connection elbow
Technical data:
Max. flow rate: 18,000 l/h
Max. delivery head / max. pressure: 18 m / 2000 bar
Rated power: 2000 watts
immersion depth max.: 7 m
Pressure connection: 57.29 mm (2" IG)
Suction level min.: 70 mm
dirt particle size max.: 50 mm
Pumped liquid temperature max.: 35 °C
Delivery rate and delivery head:
16 m – 4,650 l/h
14 m – 8,000 l/h
12 m – 10,680 l/h
10 m – 13,050 l/h
8 m – 14,750 l/h
6 m – 15,960 l/h
4 m – 17,000 l/h
2 m – 17,600 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water extraction point. The table above shows the performance of the Extrema CUT 300/18 CX dirty water construction pump at different delivery heads. For example, with a delivery head of 4 meters, this pump can expect a delivery rate of 17,000 liters per hour.
