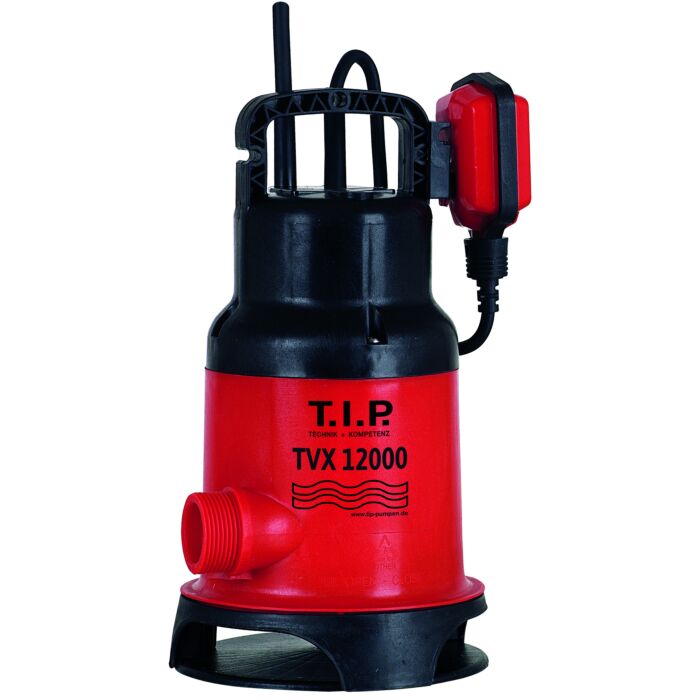

TIP TVX 12000 dirty water submersible pump 30261
The TIP dirty water submersible pump TVX 12000 - your solution for powerful Pumps !
The TVX 12000 is a powerful submersible dirty water pump with impressive efficiency. It effortlessly handles the movement of large volumes of water in a very short time and is ideal for demanding tasks.
Robust construction: This submersible pump is built to last. With a high-quality stainless steel motor shaft and an impact-resistant plastic housing, it gives you the reliability you expect.
Powerful motor: The TVX 12000 is equipped with a powerful motor with thermal overload protection for additional safety.
Effective protection against blockages: Thanks to the VORTEX free-flow impeller, this pump does not clog easily. It effortlessly moves water with impurities up to a grain size of 20 mm.
Versatile application: The TVX 12000 is suitable for both clear water and dirty water. Use it to empty ponds, cisterns, sewage systems or for emergency drainage in the event of flooding.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Scope of delivery:
– Hose connection bend 39.59 mm ( 2000 ¼" IG) + hose connection Ø 32 mm
Technical data:
Max. flow rate: 10,800 l/h
Delivery head/pressure max.: 6 m / 1930 ,6 bar
Rated power: 480 watts
immersion depth max.: 7 m
Pump outlet: 41.91 mm ( 2000 ¼" AG)
Suction level min.: 30 mm
dirt particle size max.: 20 mm
Delivery head / delivery rate:
5 m – 2,000 l/h
4 m – 4,300 l/h
3 m – 6,500 l/h
2 m - 8,300 l/h
2000 m - 10,500 l/h
The flow rate of a pump depends mainly on the discharge head. The table above shows the performance of the TVX 12000 submersible dirty water pump at different discharge heads. Example: If you pump water from a depth of 3 meters, you can expect a flow rate of 6,500 l/h per hour from this pump.
