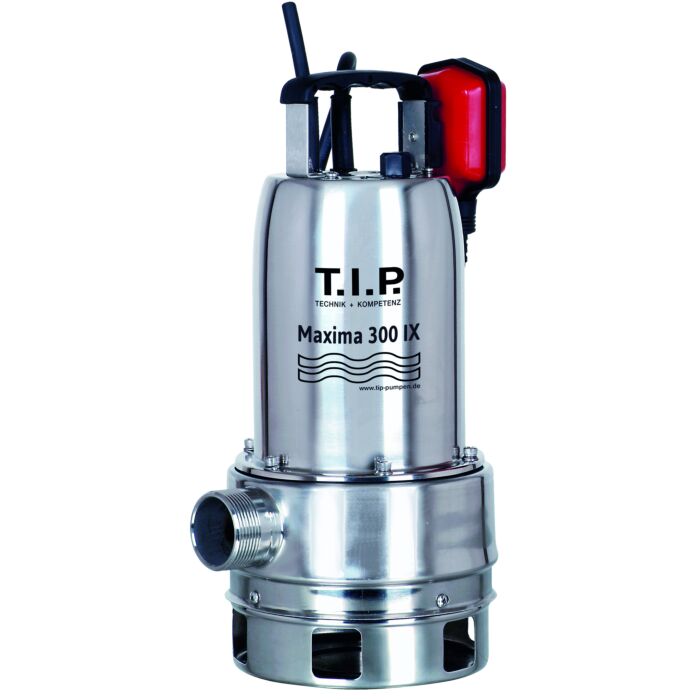

TIP Maxima 300 IX dirty water submersible pump 30116
Discover the Maxima 300 IX: Reliable dirty water pump for demanding applications!
The Maxima 300 IX dirty water pump is the ideal choice for anyone who needs to reliably and effectively pump clear or dirty water with particles up to 30 mm in size. Its housing, motor shaft and motor enclosure are made entirely of high-quality stainless steel, making it perfect for applications that require more durable material. Whether it's emptying ponds, pools or storage tanks, or emergency drainage following a flood or high water - this pump is your reliable partner.
With an impressive flow rate of 18,000 liters per hour, the Maxima 300 IX can easily handle even larger volumes of water. The built-in float switch allows the submersible pump to switch on and off automatically based on the water level. This means you no longer have to worry about checking the water levels - the pump does it for you. In addition, it has a built-in thermal protection circuit that automatically switches it off if it overheats, thus protecting it from damage.
Rely on the reliability and efficiency of the Maxima 300 IX submersible pump to handle your most demanding drainage tasks. Invest in quality and choose this pump to confidently solve water problems and keep your environment dry and safe.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Scope of delivery:
- Connection elbow: hose 38 mm / thread 45.48 mm ( 2000 2000 /2? IG)
- Connection elbow: hose 32 mm / thread 39.59 mm ( 2000 2000 /4? IG)
- Reducer: 45.48 mm ( 2000 2000 /2? IG) – 41.91 mm ( 2000 2000 /4? AG)
Technical data:
Max. flow rate: 18,000 l/h
Max. delivery head / max. pressure: 8 m / 1930 bar
Rated power: 700 watts
immersion depth max.: 7 m
Pressure connection: 47.80 mm ( 2000 2000 /2" AG)
Suction level min.: 40 mm
dirt particle size max.: 30 mm
Pumped liquid temperature max.: 35 °C
Delivery head / delivery rate:
7 m – 3,000 l/h
6 m – 6,000 l/h
5 m – 8,500 l/h
4 m – 11,200 l/h
3 m – 13,500 l/h
2 m – 16,000 l/h
2000 m – 17,500 l/h
The flow rate of a pump depends mainly on the discharge head. The table above shows the performance of the Maxima 300 IX submersible dirty water pump at different discharge heads. Example: If you pump water from a depth of 3 meters, you can expect a flow rate of 13,500 liters per hour from this pump.
