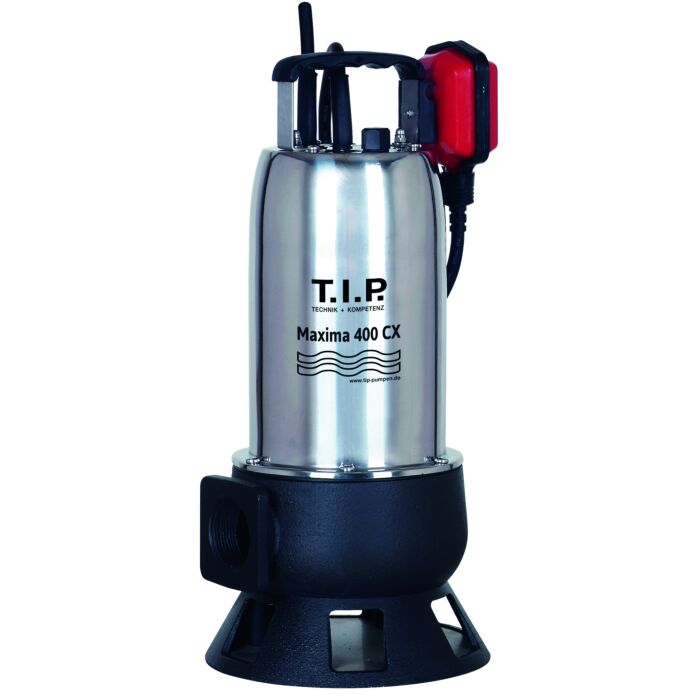

TIP Maxima 400 CX dirty water submersible pump 30140
Maxima 400 CX: Superior performance and durability for extreme conditions
The Maxima 400 CX submersible dirty water pump is no ordinary device; it is a top-of-the-range product that has been specially developed for use in extreme conditions. In particular, Pumps faces enormous challenges when emptying construction and waste water pits. For this reason, the hydraulic housing and the almost indestructible impeller are made of robust cast iron - a construction that is known for its durability and resistance.
Equipped with a powerful 950-watt motor, this pump achieves an exceptionally high flow rate of up to 24,000 liters per hour. Its impressive maximum grain size of 35 mm and the ball bearings running in an oil bath are clear signs of its outstanding quality and capacity. This top-class submersible dirty water pump can handle even large particles with ease.
The lockable float switch is another feature that improves the functionality of this pump. It allows the unit to turn on and off automatically depending on the water level. This protects the pump from running dry and ensures a longer lifespan.
If you need a pump that can perform at its best even in the toughest conditions, then the Maxima 400 CX is the best choice. Rely on its superior performance and durability to confidently handle water problems even in extreme situations. Invest in quality and choose this top-class pump to keep your environment dry and safe.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Scope of delivery:
- Connection elbow: hose 38 mm / thread 45.48 mm ( 2000 ½" IG)
- Connection elbow: hose 32 mm / thread 39.59 mm ( 2000 ¼" IG)
- Reducer: 45.48 mm ( 2000 ½"IG) - 41.91 mm ( 2000 ¼" AG)
- Double nipple: 47.80 mm ( 2000 ½" AG) - 47.80 mm ( 2000 ½" AG)
Technical data:
Max. flow rate: 24,000 l/h
Max. delivery head / max. pressure: 9 m / 1930 ,9 bar
Rated power: 950 watts
immersion depth max.: 7 m
Pressure connection: 45.48 mm ( 2000 2000 /2" IG)
Suction level min.: 40 mm
dirt particle size max.: 35 mm
Pumped liquid temperature max.: 35 °C
Delivery head / delivery rate:
8 m – 2000 .800 l/h
7 m – 4,800 l/h
6 m – 7,800 l/h
5 m – 10,800 l/h
4 m – 13,500 l/h
3 m – 15,600 l/h
2 m – 18,100 l/h
2000 m – 20,700 l/h
The flow rate of a pump depends mainly on the discharge head. The table above shows the performance of the Maxima 400 CX submersible dirty water pump at different discharge heads. Example: If you pump water from a depth of 3 meters, you can expect a flow rate of 15,600 liters per hour from this pump.
