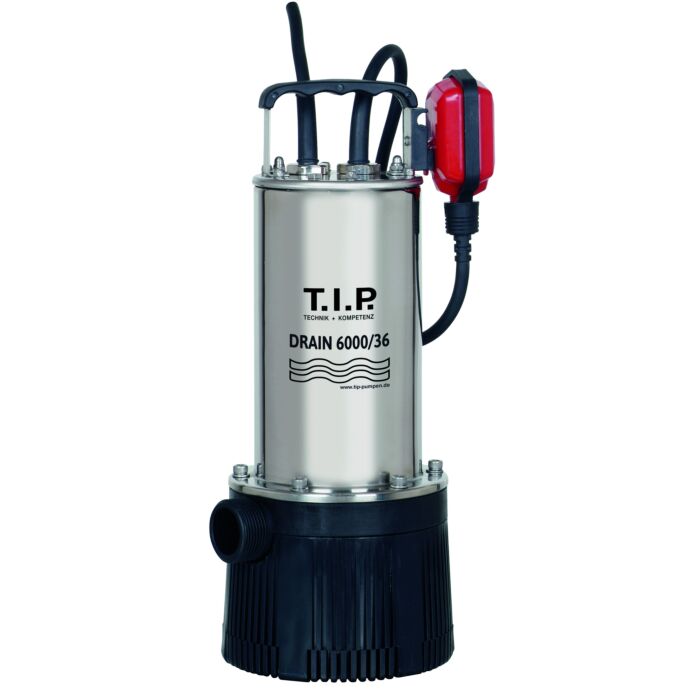

TIP Drain 6000/36 submersible pressure pump - stainless steel 30136
Drain 6000/36: The powerful solution for deep wells and efficient irrigation
The Drain 6000/36 is more than just an ordinary submersible pressure pump - it is a powerful, three-stage pumping wonder. Its robust pump housing and stainless steel motor shaft guarantee not only durability, but also first-class performance in every situation.
This pump is designed for automatic operation and has an intelligent float switch that not only ensures smooth operation but also protects against damage caused by a lack of water. It is specially designed for use in wells, cisterns and similar depressions with a diameter of 50 cm or more.
What really sets the Drain 6000/36 apart is its ability to pump water from great depths while maintaining high pressure. This makes it the ideal choice for watering gardens and lawns. It can also easily run irrigation systems such as sprinklers, even in larger installations.
This pump is also great for tasks outside the garden. When it comes to cleaning patios and walkways, the Drain 6000/36 is your reliable partner. With its impressive performance and reliability, it will efficiently meet your watering and cleaning needs.
Trust the Drain 6000/36 if you need a robust, powerful submersible pressure pump. It not only brings water from the depths, but also peace and reliability to your irrigation system.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all Ersatzteile you need for up to a whole decade after the date of purchase.
Scope of delivery:
- a connector
Technical data:
Max. flow rate: 6,000 l/h
Max. delivery head / Max. pressure: 34 m / 3.4 bar
Rated power: 950 watts
immersion depth max.: 7 m
Pressure connection: 41.91 mm ( 2000 2000 /4" AG)
dirt particle size max.: 2 mm
Maximum number of sprinklers: 4
Delivery rate and delivery head:
30 m – 2000 .100 l/h
27 m – 2000 ,500 l/h
24 m – 2,800 l/h
21 m – 3,550 l/h
18 m – 4,050 l/h
15 m – 4,500 l/h
12 m – 4,800 l/h
9 m – 5,300 l/h
6 m – 5,700 l/h
3 m – 5,850 l/h
2000 m – 5,950 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water outlet. The table above shows the performance of the Drain 6000/36 submersible pressure pump at different delivery heads. For example, with a delivery head of 3 meters, this pump can expect a delivery rate of 5,850 liters per hour.
