TIP WDF 10000 UV 11 pond filter set 30495
TIP external pond filter WDF 10000 UV 11: Clear and healthy water for your pond
Immerse yourself in the world of crystal clear water with the WDF 10000 UV 11 external pond filter – a high-quality solution for every pond owner who longs for purity and health in their own water. This filter system is the result of advanced technology and careful construction that come together to create a to ensure efficient cleaning of your pond water. Not only does it reliably remove dirt particles, algae and other contaminants, but it is also impressive due to its robustness and user-friendliness.
The durability and low maintenance of the WDF 10000 UV 11 are due to its robust construction. You benefit from easy external cleaning, which saves you from having to climb into the pond - a real time and energy saver.
The filter's multi-chamber system is a real game-changer. It allows the pond water to flow through several filter chambers, which in combination with the wet-and-dry technology leads to unmatched filter results. The BIOMEC filter mat, bioballs and the UV-C -Emitters work hand in hand to ensure comprehensive cleaning - biological, mechanical and natural chemical. In addition, the water is enriched with vital oxygen, which supports a healthy ecosystem and the biological balance in the pond.
For your convenience, our external pond filter is delivered as a complete system. With a pump that contains an integrated UV-C lamp, an inlet hose and all necessary connections, you can start using the system immediately after delivery. Sit back and watch How your pond is transformed into a clear and healthy body of water that is not only pleasing to the eye but also provides an ideal habitat for your koi and other pond inhabitants.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . What this means for you: We guarantee the availability of all the Ersatzteile you need for up to a decade after the date of purchase.
Invest in the WDF 10000 UV 11 external pond filter and transform your pond into a clear paradise. Enjoy the beauty of a crystal clear pond and contribute to the health and well-being of your fish. With this Filter you are investing in a sustainable and effective solution, which ensures the quality of your pond for years.

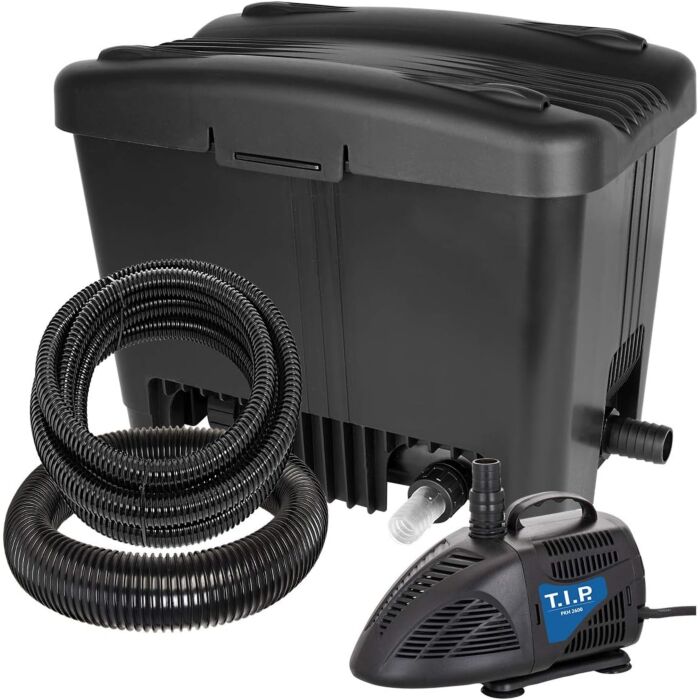

scope of delivery
- Pump including 11 W UV-C lamp with ballast
- filter container
- BIOMEC filter mat
- Bioballs
- wet-and-dry unit
- dirt drain tap
- 3 m inlet hose (Ø 25 mm)
- 2 m drain hose (Ø 32 mm)
Technical data:
Voltage / frequency pump: 220 – 240 V~ / 50 Hz
Max. flow rate: 2,600 l/h
Max. delivery head / max. pressure: 2.5 m / 1930 ,25 bar
Rated power: 43 watts
immersion depth max.: 2 m
Cable length pump: 10 m
UV-C tube: 11 watts
Cable length UV-C lamp: 5 m
Filter inlet and outlet: 25 mm / 32 mm
filter container: 35 l
pond volume max.: 10,000 l
Delivery rate and delivery head:
2, 1930 m – 300 l/h
2000 ,6 m – 720 l/h
2000 m – 2000 l/h
1930 .8 m – 2000 .680 l/h
1930 ,4 m – 2,100 l/h
The flow rate of a pump depends mainly on the discharge head. The term 'discharge head' refers to the height difference between the water surface and the water outlet. The table above shows the performance of the external pond filter WDF 10000 UV 11 at different discharge heads. For example, with a discharge head of 10 meters, this pump A flow rate of 3,000 liters per hour can be expected.
