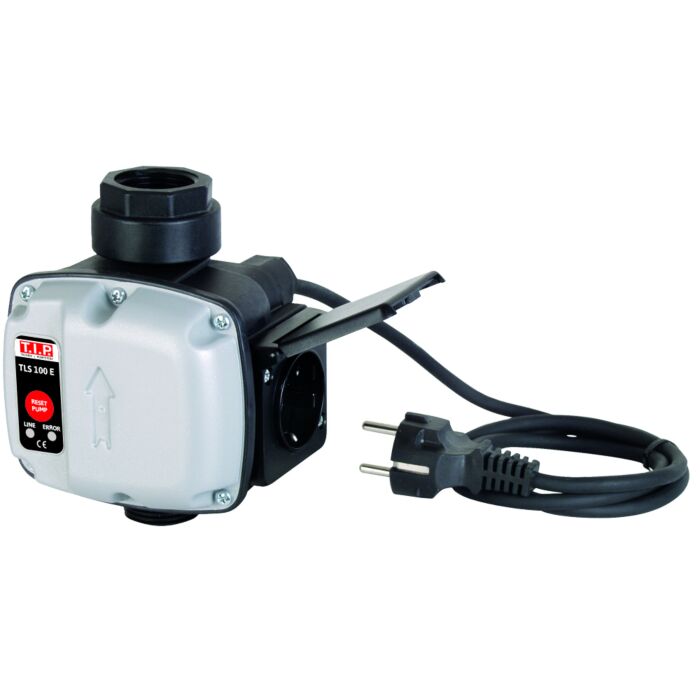

TIP TLS 100 E dry-run protection 30915
Dry-run protection TLS 100 E - your Pumps in the best hands
The TLS 100 E is your reliable partner when it comes to protecting your garden pumps and domestic waterworks from dry running. This electronic flow monitor offers numerous advantages to ensure your Pumps remains in perfect working order:
Optimal dry-run protection: With the TLS 100 E, you can be confident that your pump won't be damaged by dry running. The adjustable shut-off timer ensures that the pump shuts off in a timely manner if the flow is interrupted, whether due to a lack of water, closed pressure lines, or similar.
Simple Plumbing : The Plumbing of the TLS 100 E is incredibly simple and can be easily retrofitted. This means you can retrofit your existing domestic waterworks and garden pumps with this dry-run protection to protect them from damage.
Effective monitoring: This device activates your electric pump and keeps it running as long as a sufficient amount of fluid is flowing through the pipe. As soon as the flow is interrupted, whether due to a lack of water or other causes, a timer shuts off the pump to prevent damage from dry running.
Visual indicator: The TLS 100 E features a visual function and fault indicator that shows you the operating status of the dry-run protection at a glance. This allows you to ensure that everything is functioning properly at all times.
10 years of peace of mind - Our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only receive a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on Ersatzteile . This means that we guarantee the availability of all Ersatzteile you need for up to a full decade after the date of purchase.
Protect your Pumps and extend its lifespan with the TLS 100 E dry-run protection. Invest in the safety of your devices and avoid costly repairs with this reliable flow monitor.
Scope of delivery:
- Electronic dry-run protection
Technical data:
Mains voltage / frequency: 115 - 230 V ~ / 50 - 60 Hz
Max current for connection socket: 12 A
Min. current consumption of the downstream pump under load: 2000 A
Protection class: IP44
Connection input: IG 30.93 mm ( 2000 "), rotatable
Connection output: AG 33.25 mm ( 2000 “)
Max. operating pressure: 10 bar
Timer setting range: 10 – 180 seconds (factory setting 180 s)
Software class: A
Max. temperature of the pumped liquid: 55° C
Connection cable: 2000 ,25 m (H05RN-F)
Weight 1930 .75 kg
Dimensions (L x D x H): 11 x 12 x 14.5 cm
