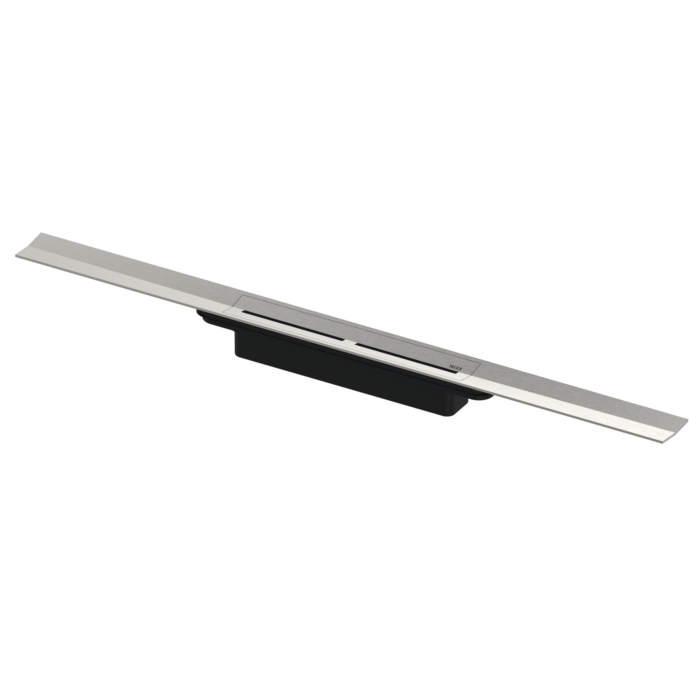

TECE drainprofile shower channel 671600
The TECEdrainprofile 55mm shower channel is a high-quality shower profile for shower drainage. It is installed in the tile adhesive above the screed and waterproofing, creating a flush appearance in walk-in showers. Available in lengths of 800mm, 900mm, 1000mm, 1200mm, and 1600mm, and with glossy or matte surface options, the channel can be optimally adapted to various shower areas and design concepts.
- for shower drainage
- for installation in the tile adhesive above the screed and the waterproofing
- consisting of
- Cuttable stainless steel shower profile
- with internal gradient to improve water drainage and self-cleaning effect
- Stainless steel profile lid with push function for manual removal
- Connection piece for connection to the TECEdrainprofile drain
- Locking elements for easy installation and a strong bond with the tile adhesive
- for floor coverings from 8 - 25 mm with adhesive bed
- For flush-mounted installation of wall coverings from 10 mm with adhesive bed
- for wall mounting
- flush with the wall
- or at any distance from the wall
Material, construction and function of the shower drain
The shower drain is made of cuttable stainless steel (material 1.4301/304) and features an internal slope to improve water drainage and self-cleaning. The stainless steel cover has a push-to-open mechanism and can be easily removed by hand. The system is rated for load class K3 (test load 300 kg) and is suitable for floor coverings from 8–25 mm thick (including adhesive bed). For flush-mounted installation, wall coverings from 10 mm thick are possible. The drain can be mounted directly on the wall, flush with the wall, or at any desired distance.
Assembly and installation
The TECEdrainprofile shower channel (55 mm diameter) can be cut to length up to 500 mm and is installed directly in the tile adhesive. Interlocking elements ensure a strong bond with the adhesive bed, while the connecting piece allows for easy connection to the TECEdrainprofile drain. Installation is flexible and accommodates different installation heights and tile thicknesses, guaranteeing a precise and stable fit.
Advantages and areas of application
The shower drain combines a minimalist look, reliable drainage, and easy maintenance. It offers hygienic cleaning, visual design freedom, and maximum functionality for barrier-free showers in new builds or renovations. The choice between polished or brushed stainless steel and various lengths allows for customized solutions for any bathroom design.
