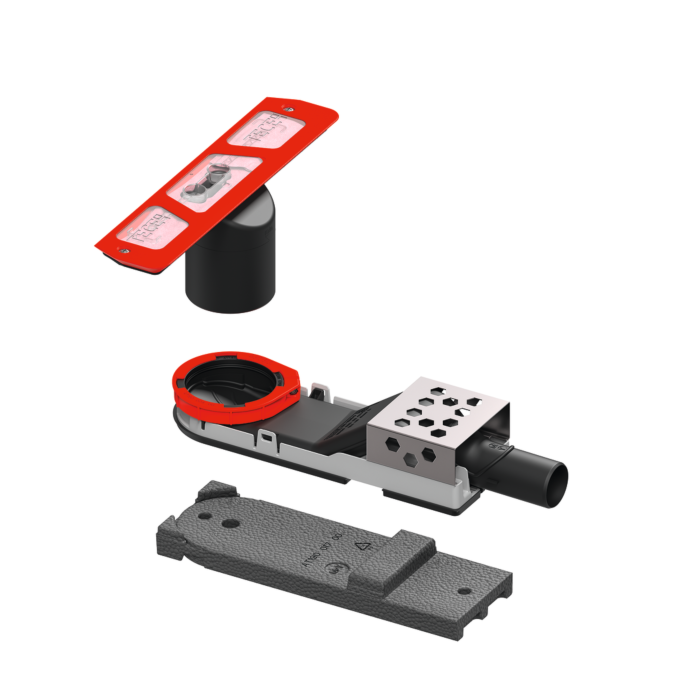

TECE TECEdrainway Drain 693020
- Drainage system with freeflow technology for TECEdrainway shower profiles
- for installation in screed
- for connection to a DN 40 wastewater pipe (180° swivel range)
- with factory-installed Seal System sealing sleeve
- meets the requirements of EN 1253-1 and DIN 18534
- Minimum installation height 65 mm (bottom edge of drain to top edge of screed)
- Discharge rate greater than or equal to 0
- 5/greater than or equal to 0
- 6 l/s (according to EN 1253 at 10/20 mm backwater)
- Water seal height 25 mm
- Integrated screed anchoring
- factory-installed
- flexible sealing sleeve with Seal System
- Pre-cut soundproofing strips to fit
- Construction protection covering with slurry barrier during the installation of the composite waterproofing
- Floor mounting with hammer-in anchors and sound decoupling elements
- Spacer plate with a thickness of 20 mm for optional use with long wastewater pipes
