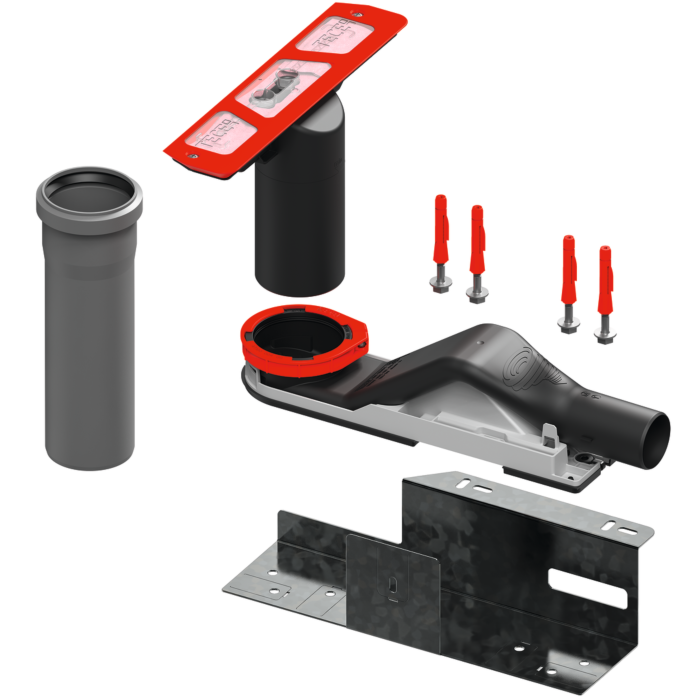

TECE TECEdrainway drain 693030
- Drainage system with freeflow technology for TECEdrainway shower profiles
- for installation in screed
- for vertical connection to a DN 50 wastewater pipe (180° swivel range)
- with factory-installed Seal System sealing sleeve
- meets the requirements of EN 1253-1 and DIN 18534
- Minimum installation height 42 mm (bottom edge of drain to top edge of screed)
- Discharge rate greater than or equal to 0
- 5/greater than or equal to 1
- 2 l/s (according to EN 1253 at 10/20 mm backwater)
- Water seal height 50 mm
- Integrated screed anchoring
- factory-installed
- flexible sealing sleeve with Seal System
- Pre-cut soundproofing strips to fit
- Construction protection covering with slurry barrier during the installation of the composite waterproofing
- Ceiling mounting with mounting hardware for the floor below
- with wastewater pipe DN 75
- Length 250 mm
- Required core drilling: 100 mm
