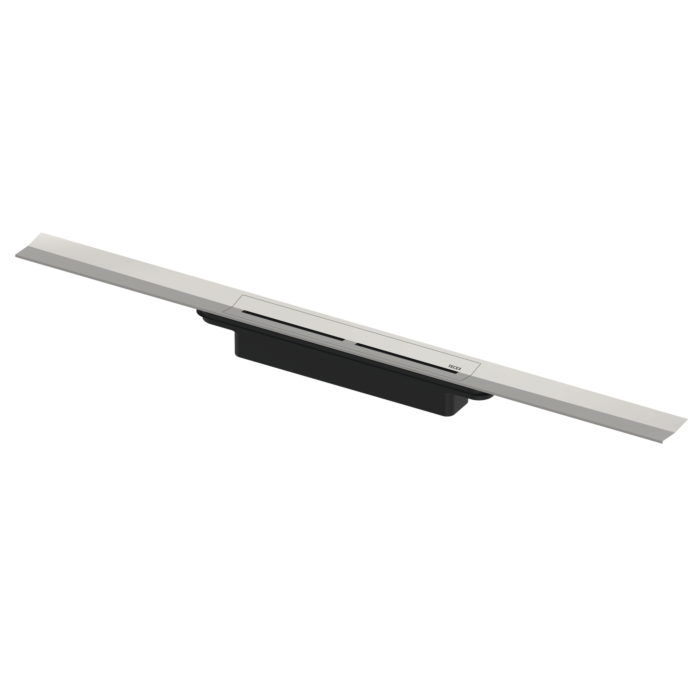

TECEdrainprofil shower channel set with drain 670810
- for shower drainage
- for installation in the tile adhesive above the screed and the waterproofing
- consisting of
- Cuttable stainless steel shower profile
- with internal gradient to improve water drainage and self-cleaning effect
- Stainless steel profile lid with push function for manual removal
- Connection piece for connection to the TECEdrainprofile drain
- Locking elements for easy installation and a strong bond with the tile adhesive
- for floor coverings from 8 - 25 mm with adhesive bed
- For flush-mounted installation of wall coverings from 10 mm with adhesive bed
- for wall mounting
- flush with the wall
- or at any distance from the wall
This set provides a well-designed solution for flush-mounted shower drainage. Ideal for stylish bathroom designs that combine comfort, hygiene, and aesthetics.
What does the set offer?
The set consists of the TECEdrainprofil shower channel (800 mm, polished stainless steel) and the matching drain with a DN 50 connection. The cuttable shower profile features an internal slope to optimize water drainage and promote self-cleaning. The stainless steel profile cover has a push-to-open mechanism and can be easily removed by hand. Interlocking elements simplify installation and create a secure bond with the tile adhesive. The factory-installed sealing collar ("Seal System") ensures a reliable seal when installed above the screed and tile adhesive. The combination of functionality, flexible installation options, and understated design makes this set an elegant solution for modern shower rooms.
Why is the effort worthwhile?
This set offers both comfort and aesthetic clarity: no visible tile cuts along the width, but rather seamless lines. The slope and the high-quality polished stainless steel surface promote rapid drainage and significantly simplify cleaning. The 673002 drain comes standard with a click-fit sealing collar, removable odor trap, and screed anchoring. With a drainage capacity of 0.8 l/s, a 50 mm water seal, and integrated sound insulation and construction protection cover, it meets the highest standards of functionality. Installation is flexible: flush with the wall or freely positionable, suitable for floor coverings from 8–25 mm and wall coverings from 10 mm.
Who is this set suitable for?
Whether for new construction or modern renovation: The TECEdrainprofil shower channel set with 800 mm polished stainless steel drain is aimed at planners, tradespeople, and bathroom enthusiasts who value durable construction, minimalist design, and high user-friendliness. It enables a barrier-free shower where the technology remains discreetly in the background while ensuring maximum functionality.
The TECEdrainprofile 55mm shower channel is a high-quality shower profile for shower drainage. It is installed in the tile adhesive above the screed and waterproofing, creating a flush appearance in walk-in showers. Available in lengths of 800mm, 900mm, 1000mm, 1200mm, and 1600mm, and with glossy or matte surface options, the channel can be optimally adapted to various shower areas and design concepts.
Material, construction and function of the shower drain
The shower drain is made of cuttable stainless steel (material 1.4301/304) and features an internal slope to improve water drainage and self-cleaning. The stainless steel cover has a push-to-open mechanism and can be easily removed by hand. The system is rated for load class K3 (test load 300 kg) and is suitable for floor coverings from 8–25 mm thick (including adhesive bed). For flush-mounted installation, wall coverings from 10 mm thick are possible. The drain can be mounted directly on the wall, flush with the wall, or at any desired distance.
Assembly and installation
The TECEdrainprofile shower channel (55 mm diameter) can be cut to length up to 500 mm and is installed directly in the tile adhesive. Interlocking elements ensure a strong bond with the adhesive bed, while the connecting piece allows for easy connection to the TECEdrainprofile drain. Installation is flexible and accommodates different installation heights and tile thicknesses, guaranteeing a precise and stable fit.
Advantages and areas of application
The shower drain combines a minimalist look, reliable drainage, and easy maintenance. It offers hygienic cleaning, visual design freedom, and maximum functionality for barrier-free showers in new builds or renovations. The choice between polished or brushed stainless steel and various lengths allows for customized solutions for any bathroom design.
