TECEdrainprofil shower channel set with drain 671000
- for shower drainage
- for installation in the tile adhesive above the screed and the waterproofing
- consisting of
- Cuttable stainless steel shower profile
- with internal gradient to improve water drainage and self-cleaning effect
- Stainless steel profile lid with push function for manual removal
- Connection piece for connection to the TECEdrainprofile drain
- Locking elements for easy installation and a strong bond with the tile adhesive
- for floor coverings from 8 - 25 mm with adhesive bed
- For flush-mounted installation of wall coverings from 10 mm with adhesive bed
- for wall mounting
- flush with the wall
- or at any distance from the wall
Description:
Shower profile for shower drainage, for installation in the tile adhesive above the screed and the waterproofing.
Consisting of:
- Cuttable shower profile with internal slope to improve water drainage and self-cleaning effect
- Shower profile can be shortened down to 500 mm.
- Profile lid with "push function" for manual removal, load-bearing capacity according to load class K3 - test load 300 kg
- Shower profile and profile cover made of stainless steel material 1.4301 (304)
- Connection piece for connection to a TECEdrainprofile drain
- Locking elements for easy installation and a strong bond with the tile adhesive
- for floor coverings from 8-25 mm (including adhesive bed)
- For flush-mounted installation of wall coverings from 10 mm (including adhesive bed)
- For installation on the wall (flush with the wall) or at any distance from the wall
Please order separately:
- TECEdrainprofile drain
This set provides a well-designed solution for flush-mounted shower drainage. Ideal for stylish bathroom designs that combine comfort, hygiene, and aesthetics.
What does the set offer?

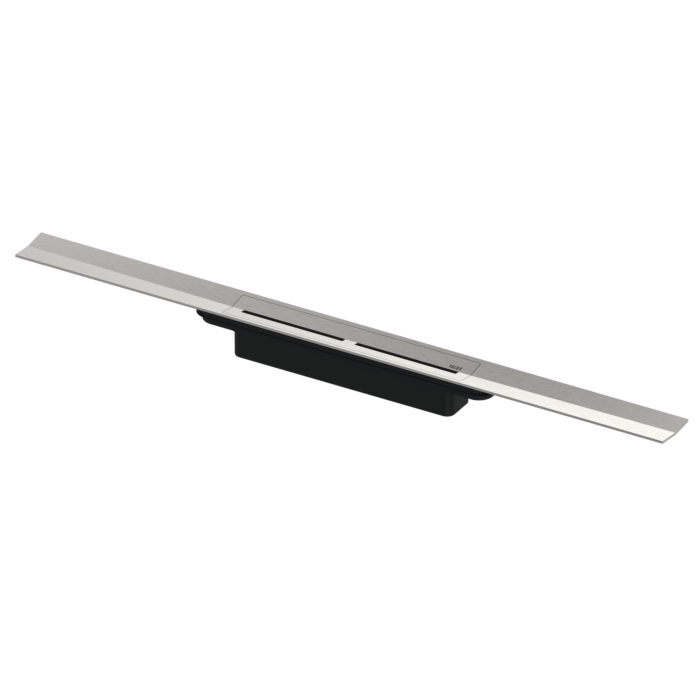

The set consists of the TECEdrainprofile shower channel (1000 mm, brushed stainless steel) and the matching drain 673002 with a DN 50 connection. The cuttable shower profile features an internal slope to optimize water drainage and promote self-cleaning. The stainless steel profile cover has a push-to-open mechanism and can be easily removed by hand. Interlocking elements simplify installation and create a secure bond with the tile adhesive. The factory-installed sealing collar ("Seal System") ensures a reliable seal when installed above screed and tile adhesive. The combination of functionality, flexible installation options, and understated design makes this set an elegant solution for modern shower rooms.
Why is the effort worthwhile?
This set offers both comfort and aesthetic clarity: no visible tile cuts along the width, but rather seamless lines. The slope and high-quality stainless steel surface promote rapid drainage and significantly simplify cleaning. The drain comes standard with a click-fit sealing collar, removable odor trap, and screed anchoring. With a drainage capacity of 0.8 l/s, a 50 mm water seal, and integrated sound insulation and construction protection cover, it meets the highest standards of functionality. Installation is flexible: flush with the wall or freely positionable, suitable for floor coverings from 8–25 mm and wall coverings from 10 mm.
Who is this set suitable for?
Whether for new construction or modern renovation: The TECEdrainprofil shower channel set with 1000 mm brushed stainless steel drain is aimed at planners, tradespeople, and bathroom enthusiasts who value durable construction, minimalist design, and high user-friendliness. It enables a barrier-free shower where the technology remains discreetly in the background while ensuring maximum functionality.
