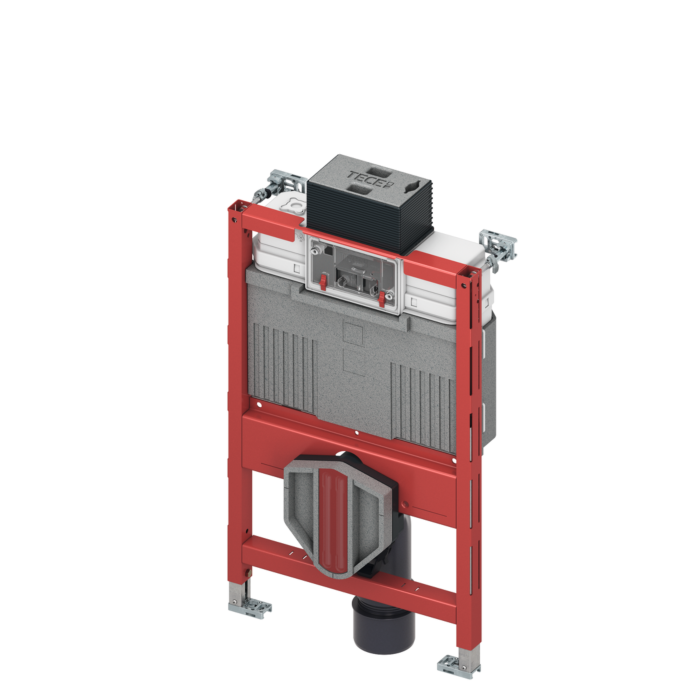

TECEprofil WC module 9300301
- for mounting on TECEprofil profile tubes or as a wall or corner module
- for WC fittings and TECE flush plates
- Fully pre-assembled unit
- consisting of TECE-UP cistern for top or front actuation, plastic safety tank
- The cistern is completely pre-assembled and sealed.
- Cistern connection with 1/2" female thread
- Hydraulically optimized cistern for low installation heights
- 10 l tank capacity
- 6 l cistern according to DIN EN 14055
- Adjustable flush volume: 4.5/7.5/9 liters
- 3 l partial flush with dual-flush technology
- Remaining volume usable for immediate cleaning rinse
- Depending on the actuator plate, it can be used as a single or dual flush cistern.
- Depending on the mounting, it can be used for operation from above or from the front.
- tested according to DIN EN 14055
- Valve group 1 according to DIN 4109
- Low-noise hydraulic filling valve L(ap) <= 17 dB(A) at 3 bar flow pressure
- Module consisting of a self-supporting mounting frame with a powder-coated surface
- two retaining bolts and nuts M12
- WC drain bend DN 90 with transition piece DN 90/100 made of PP
- Transition piece also suitable for horizontal installation
- WC connection set DN 90 including construction protection plug
- 2 depth-adjustable module fixings
Robust construction for wall-hung toilet use
The TECEprofil WC module is designed for use in drywall construction or pre-wall installations. With a height of 820 mm, it provides a stable base for wall-hung toilets and ensures long-term load-bearing capacity. The galvanized steel profile construction has been tested for mechanical strength and supports the installation of standard toilet ceramics.
Integrated cistern with flexible actuation
The integrated concealed cistern allows for a ready-to-use installation without additional flushing technology. Actuation can be from either the front or the top, offering flexibility for both standard and custom bathroom layouts. The flushing system is designed for easy maintenance and reliable operation, including adjustable water volume for different toilet models.
Easy assembly and connection options
TECEprofil modules are designed for quick installation. Height-adjustable mounting points facilitate adaptation to different wall heights and ceramic tile types. Water supply and drainage connections conform to common standards, allowing for seamless integration into existing plumbing systems. Installation is possible in both solid and lightweight walls.
Compatibility and areas of application
The module is compatible with all TECE flush plates. It is suitable for private bathrooms, public facilities, and commercial buildings. Its flexible actuation and standardized connections ensure a wide range of applications.
Design and everyday usability
The toilet module integrates discreetly behind the wall-hung installation. Front or top actuation ensures comfortable and barrier-free operation. The system provides a clean, uncluttered look in the bathroom, while the technology operates reliably in the background, guaranteeing a long service life.
