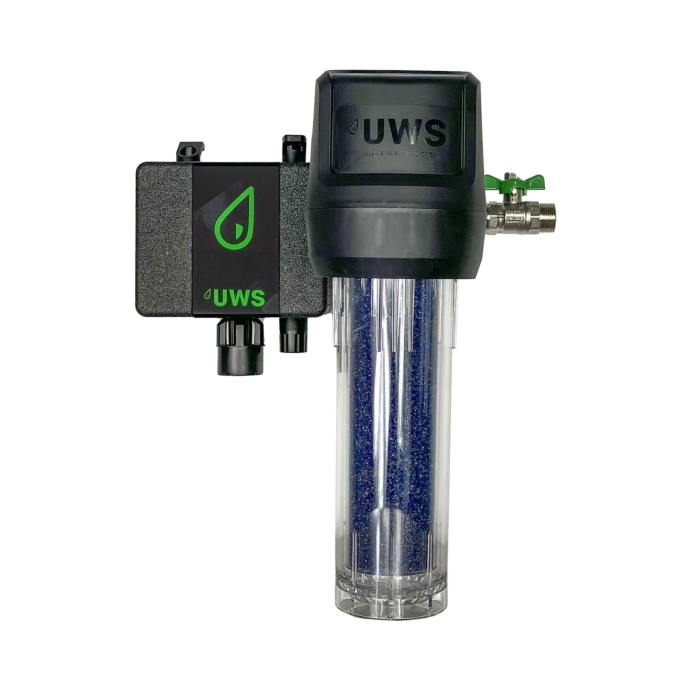

Automated replenishment for fixed connection according to DIN EN 1717
for filling heating and cooling water
consisting of: Dessert cartridge with 0.8 l Vadion
Indicat filling combination BA 1/2"
digital water meter
digital capacity measurement
keyless bleeding
with key for cartridge and union nut
with mounting hardware
with connection fittings 3/4" female thread x 1/2" male thread
with BA system separator
shut-off valves
Integrated flow limiter
Screen sealing against resin ingress
optional water supply from above
Connection thread 3/4" male thread for ÜWM
flat sealing
Maximum operating temperature 40° Celsius
Maximum filling capacity 240 l/h
Maximum operating pressure 6 bar
Capacitance at 420 mS/cm 112
5 l
adjustable pressure reducer
Electrical connection 230 V/50 Hz
Installation length 340 mm
flat sealing to flat sealing
with filling combination and shut-off valve
