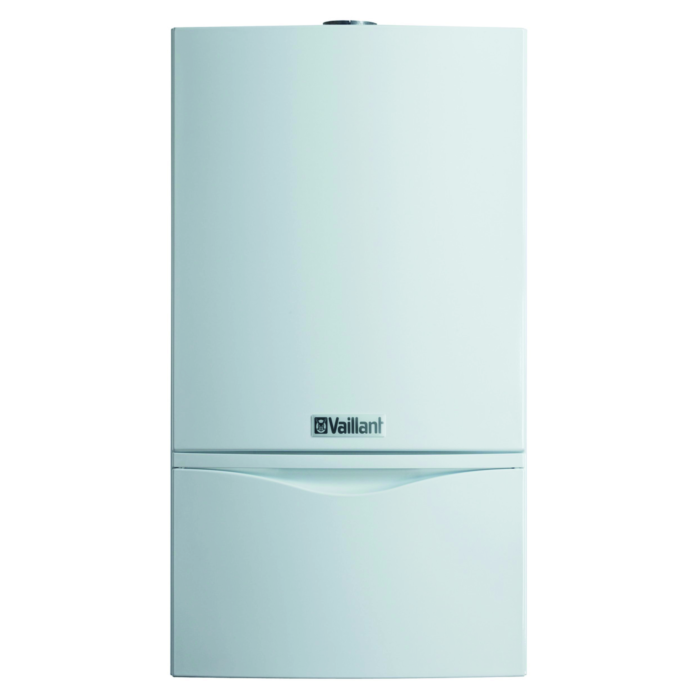

Vaillant atmoTEC plus VCW 194/4-5A gas wall heater 0010017845
consisting of electronically controlled pump
Water pressure sensor and Manometer
12 l expansion tank
automatic quick vent and heating safety valve
Vario frame
water-cooled, atmospheric premix burner
electronic partial load adjustment
Stainless steel secondary heat exchanger
hydraulic and gas pre-installation possible
DIA system with symbol display
beleuchtet
Service panel
Gas type Natural gas E
Rated power range 80/60 °C
8, 1930 -20, 1930 kW
Hot water output 20, 1930 kW
Max. heat load for heating: 22.2 kW
Max. heat load for hot water: 22.2 kW
Min. heat load 8.9 kW
Standard efficiency 84% (Hs)/93% (Hi)
Residual pump head 250 mbar
Flow temperature max. 85 °C
Electrical connection 230/50 V/Hz
Flow/return connection G 3/4
Cold/hot water connection G 3/4
Gas connection G 2000 /2
Exhaust connection 110 mm
Height/Width/Depth 800/440/360 mm
Weight 44 kg
A high-voltage connection (3~/400V) is required. Approval from the local grid operator may be required. Installation by qualified personnel only.
Attention: For gas appliances, installation only by qualified personnel
Attention: The device may only be installed with the original exhaust accessories from Vaillant !!
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
