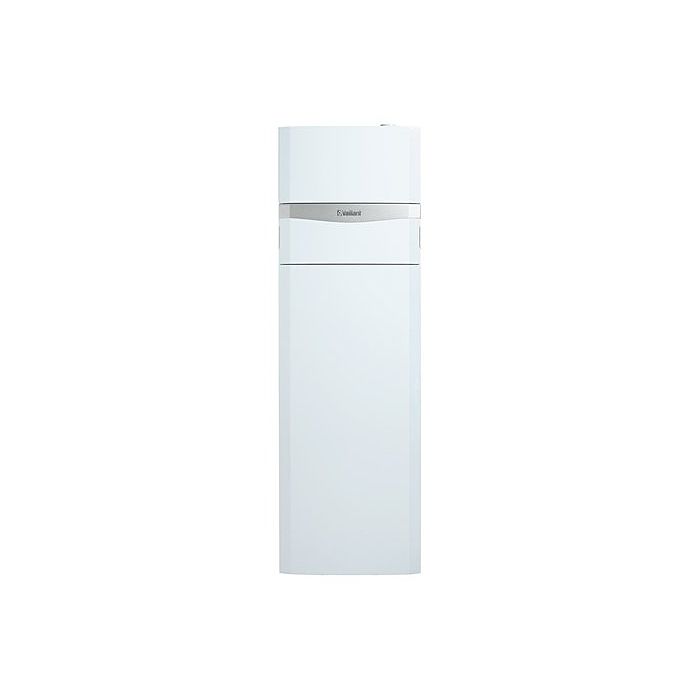

Vaillant ecoCOMPACT Gas Compact Unit 0010015600
- Combination unit for heating and hot water
- High-efficiency pumps for heating and storage charging
- electronic gas-air compound
- Multi-sensor system
- all components/accessories in one housing
- Split Mounting Concept
- consisting of an integrated DHW stratified storage tank (90 liters)
- Stainless steel secondary heat exchanger
- High-efficiency charging and circulation pump
- priority switching valve
- Pressure sensor
- 15 liters ADG
- Integral condensing heat exchanger made of stainless steel
- Integrated storage control
- DIA system with illuminated symbol display and option to install a weather-compensated heating controller calorMATIC VRC 700, gas type E
- Nominal power range: 40/30 °C
- 3.4-15.2 kW
- 60/40 °C
- 3.3-14.7 kW
- Storage charging capacity 16.0 kW
- Maximum heat load. Storage capacity: 16.3 kW
- Standard utilization rate 98% (Hs)/109% (Hi)
- Modulation range from 20 to 100%
- Maximum flow temperature: 85 °C
- Electrical connection 230V/50Hz, max. electrical power consumption 70 W
- Flow/return connection Rp 3/4
- Cold/hot water connection Rp 3/4
- Gas connection Rp 3/4
- Air/exhaust gas connection 60/100 mm
- Weight (empty) 106 kg
- Total storage capacity 90 l
- Height/Width/Depth 1320/595/693 mm
- Seasonal space heating energy efficiency class A (spectrum A++ to G)
- Seasonal hot water energy efficiency class A (spectrum A to G)
- A high-voltage power connection (3~/400V) is required. Approval from the local grid operator may be necessary. Installation must be carried out by qualified personnel only.
- Caution: Gas appliances must be installed by qualified personnel only.
- Attention: The unit must only be installed with original Vaillant exhaust accessories!
