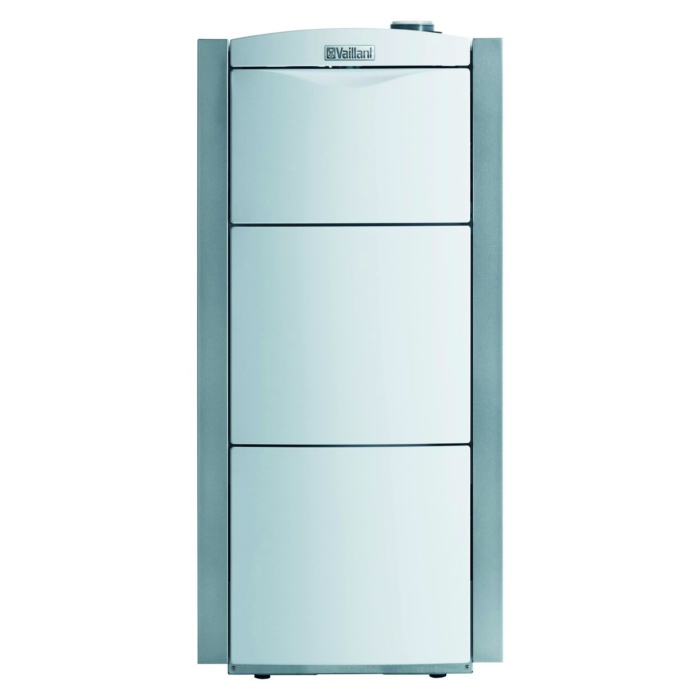

Vaillant ecoVIT exclusive gas condensing boiler 0010007508

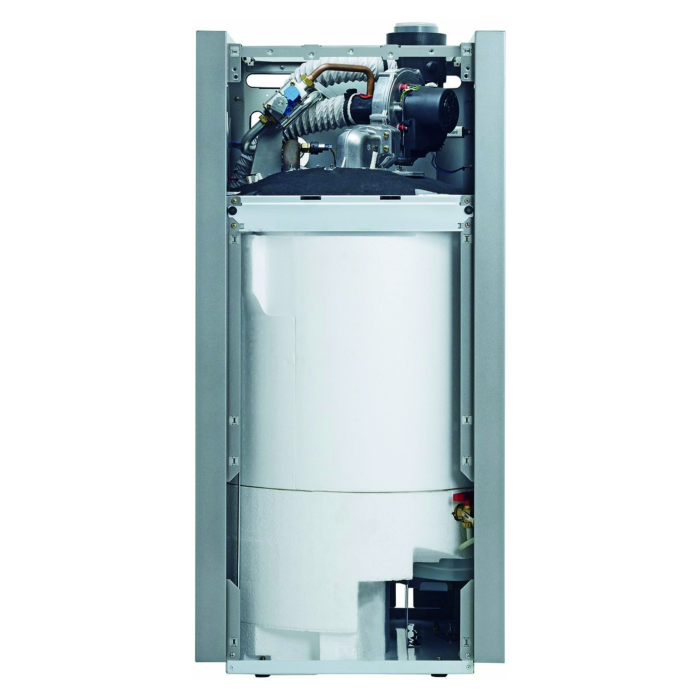

consisting of: stainless steel condensing boiler
Water pressure sensor
Boiler control panel with STB
STB test button
Display for diagnostics and troubleshooting
Installation field for the Vaillant weather-compensated heating controllers calorMATIC 470f and multiMATIC 700
Prepared for connection of the system-certified Vaillant air/flue gas ducts
DIA system with plain text display
illuminated
Gas type: Natural gas E
Nominal power range 40/30 degrees C/8
2-23
5 kW
60/40 degrees C/7
9-22
4 kW
Maximum heat load in heating mode: 22
0 kW
Standard utilization rate 98% (Hs)/109% (Hi)
Condensation amount at 40/30 degrees C approx. 2
2 l/h
PH value
approximately 3
2
Maximum flow temperature 85 degrees C
Electrical connection 230/50 V/Hz
Flow/return connection Rp 1
Gas connection Rp 3/4
Air/exhaust connection 80/125 mm
Height/Width/Depth 1257/570/691 mm
Net weight 100 kg
Water capacity 100 l
A high-voltage power connection (3~/400V) is required. Approval from the local grid operator may be necessary. Installation must be carried out by qualified personnel only.
Caution: Gas appliancesmust only be installed by qualified personnel!
Attention: The unit must only be installed with original Vaillant exhaust accessories!
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
