- Article number: 92247600
- Dimensions: 66.5 x 118.5 x 9.5 cm
- for drywall construction, compact, installation depth min. 95mm
- for dry lining, installation in front of solid walls, in lightweight stud walls and much more, adjustment range of feet from unfinished floor to OKFFB: 1930 -200mm, depth of front edge of element: min. 95mm
- 6 attachment points
- with wall bracket, including feet and mounting material, 2 WC retaining bolts M12 adjustable 180mm with protection and nuts, assembly instructions, mounting material, without actuator plate
- EN 14055
- Individual carton packaging
- Can be combined with: for wall- WC
- self-supporting, powder-coated steel frame construction, completely pre-assembled
- Front operation, transmission of the button function via flexible cable technology to the drain fitting; connection to the actuator plate via twist-click connection
- Condensation-proof concealed cistern with dual flush 3/6L, convertible to 3/4.5L, max. flush volume 7.5L, filling valve, fittings group, concealed cistern I, flexible hose to the filling valve, hand-screwable, angle valve connection set R1/2, construction protection box for inspection opening can be shortened, WC -connection bend 90° DN90 (Ø90) / with transition sleeve DN90 (Ø90) / DN110 (Ø110) with construction protection, WC -connection set DN90 (Ø90) / 180mm complete, test mark for concealed cistern: fittings group, concealed cistern I

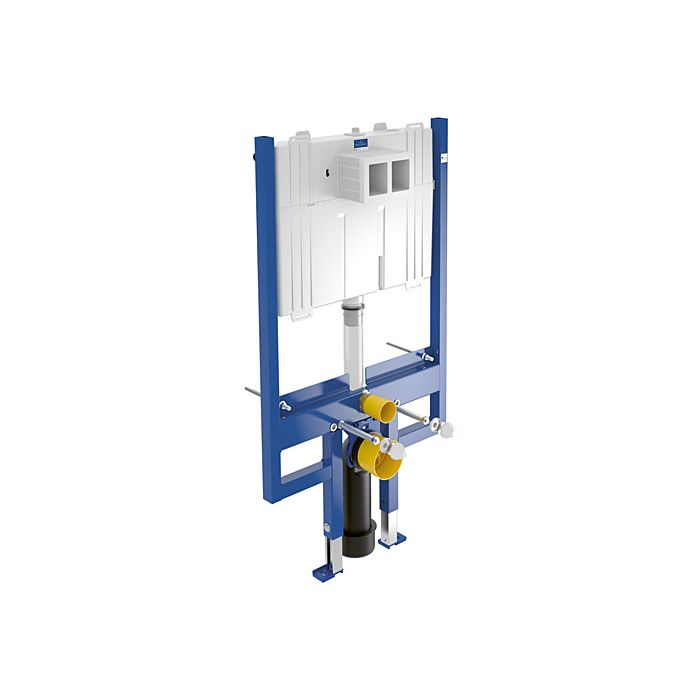

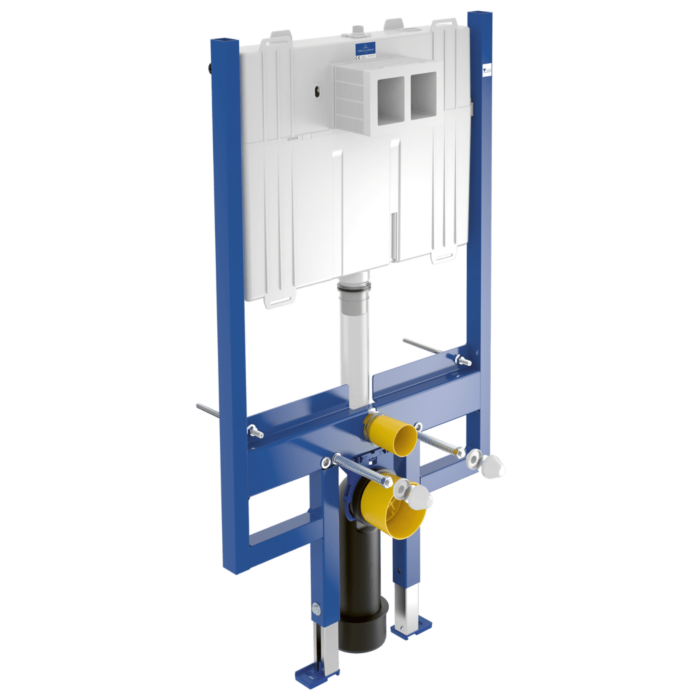

Villeroy & Boch ViConnect WC element 92247600 height 118 cm, for drywall
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 300
Part Number: 92247600
Details
Villeroy & Boch ViConnect WC element
