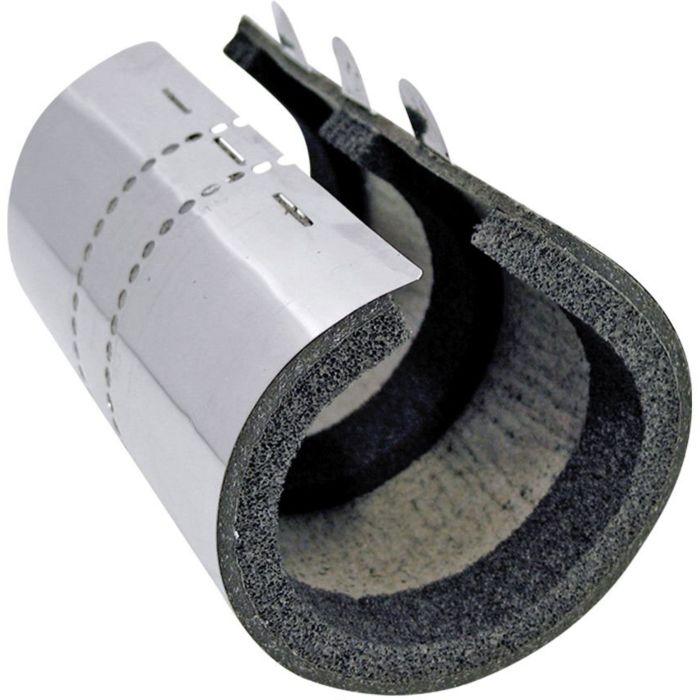

Walraven Pacifyre fire protection sleeve 2154048050
  • for sealing off combustible pipes and insulated multilayer pipes in R90 quality according to DIN 4102-11 or EI 120 acc. EN 13501 in walls (solid walls or light partition walls) and ceilings with fire protection requirements according to MBO or MLAR / LAR / RbALei
  • MSV pipes: synthetic rubber up to max. 44 mm insulation thickness depending on the pipe outer diameter
  • Fire-
  • Sound and smoke protection are guaranteed by the sleeve design
  • Length expansion of the pipe is still possible
  • little space required for areas that are difficult to access
  • Zero distance between the same cuffs possible
  • no Construction tools and no drilling required
  • Noise protection test certificate from the Fraunhofer Institute for Building Physics (IBP) available
  • tested according to EN 1366-3
  • Approved by the German Institute for Building Technology (DIBt) according to Z-19.17-1737 and externally monitored by the MPA NRW
