Wilo Trinkwasserpumpe Star-Z Nova 4132750 PN 10, 230 V, Hocheffizienzpumpe
Wilo Glandless high-efficiency pump 4132750 Star-Z Nova, PN 10, 230 V
€105.10
instead of €296.61 **
-65% You're saving €191.51
Incl. 19% VAT, plus shipping costs
Wilo Trinkwasserpumpe Star-Z Nova C 4132752 PN 10, 230 V,Hocheffizienzpumpe, mit Zeitschaltuhr
Wilo drinking water Star-Z Nova C 4132752 PN 10, 230 V, high efficiency pump, with timer
€174.47
instead of €459.21 **
-62% You're saving €284.74
Incl. 19% VAT, plus shipping costs
Wilo Service Motor 4132753 für Star-Z Nova
Wilo service motor 4132753 for glandless high efficiency pump Star Z Nova
€101.30
instead of €272.70 **
-63% You're saving €171.40
Incl. 19% VAT, plus shipping costs
Wilo Standard-Trinkwasser-Pumpe Star-Z 25/2 EM, PN 10, 1 x 230 V
Wilo standard drinking water pump Star-Z 25/2 EM, PN 10, 1 x 230V
€281.55
instead of €704.50 **
-60% You're saving €422.95
Incl. 19% VAT, plus shipping costs
Wilo Star-Z 20/1 Trinkwasser-Pumpe 4028111 PN 10, 230 V
Wilo Star-Z 20/1 Drinking water pump 4028111 PN 10, 230 V
€166.77
instead of €443.28 **
-62% You're saving €276.51
Incl. 19% VAT, plus shipping costs
Wilo Star-Z NOVA A Trinkwasserpumpe 4132751 Zirkulationspumpe 140mm
Wilo Star-Z NOVA A drinking water pump 4132751 Circulation pump 140mm
€117.94
instead of €331.49 **
-64% You're saving €213.55
Incl. 19% VAT, plus shipping costs
Wilo Star-Z Nova T Nassläufer Zirkulationspumpe  4222640, Rp 1/2,1x230V, 7W
Wilo Star-Z Nova T Wet Runner Circulation Pump 4222640, Rp 1 / 2,1x230V, 7W
€452.12
instead of €454.91 **
-1% You're saving €2.80
Incl. 19% VAT, plus shipping costs
Wilo Star-Z Standard-Trinkwasserpumpe 4047573 25/6-3, PN 10, 1x 230 V, Gehäuse Rotguss
Wilo Star-Z Standard-Trinkwasserpumpe 4047573 25/6-3, PN 10, 1x 230 V, Gehäuse Rotguss
€366.52
instead of €742.50 **
-51% You're saving €375.98
Incl. 19% VAT, plus shipping costs
Wilo Star-Z Standard-Trinkwasserpumpe 4198220 SmartHome, 230 V, Rp 1/2, 4,5 W
Wilo Star-Z Standard-Trinkwasserpumpe 4198220 SmartHome, 230 V, Rp 1/2, 4,5 W
€241.90
instead of €490.86 **
-51% You're saving €248.96
Incl. 19% VAT, plus shipping costs
0.00
Incl. 19% VAT, plus shipping costs

Details

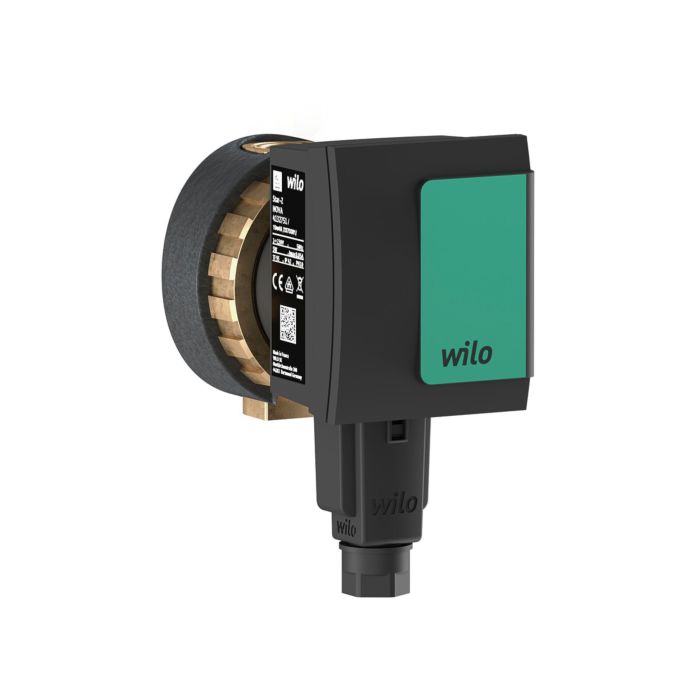

Wilo Glandless high-efficiency pump Star-Z NOVA - article number: 4132750 - circulation pump for domestic hot water - for the detached house - pump for duct installation. - blocking-current proof synchronous motor with high starting torque - brass pump housing - stainless steel impeller - stainless steel shaft - suitable for drinking water applications up to the degree of hardness of max. 20 odH - power consumption : 2-4,5 W - standard with: heat insulation jacket - housing threads: Rp ½ - housing: brass - shaft: brass - impeller: brass - storage: coal - impregnated with synthetic resin - conveyed medium: water - operating temperature (max.:+65° C): 20° C - operating / nominal pressure: PN 10 - voltage: 1ph230V/50Hz - power requirement P1 (max.): 4,5 Watt - rotational speed (max.): 3000 1/min - screw pipe connection: Pr 1/2 - brand: Wilo - type: Wilo-Star-Z NOVA

Technical Data

Technical Data
series Star-Z
product class circulating pump
Max. Media temperature 95 ° C
Min. Media temperature 2 ° C
Dimension 1 NOVA, Rp 1/2, 230 V
connection Internal thread (metric)
Nominal inside diameter 1/2 inch
Housing material Brass
Article compression stage PN 10
Supply voltage 1 x 230 V.
current 0.05 A
pumping height 83 mm
Head at nominal volume flow 0.704 kPa
rotational speed 3000 rpm
Motor power consumed (P1) 5 W.
Nominal flow 0.4 m³ / h
frequency 50 Hz
Insulation class according to IEC F
IP protection) IP42
Flange pressure rating PN 10
Connection dimension pump housing 1/2 inch
installation length 84 mm
Material impeller / pump wheel plastic
connection size Rp 1/2
Ambient temperature min. 2 ° C
phase 1 ph
tension 230 V
Ambient temperature max. 40 ° C
