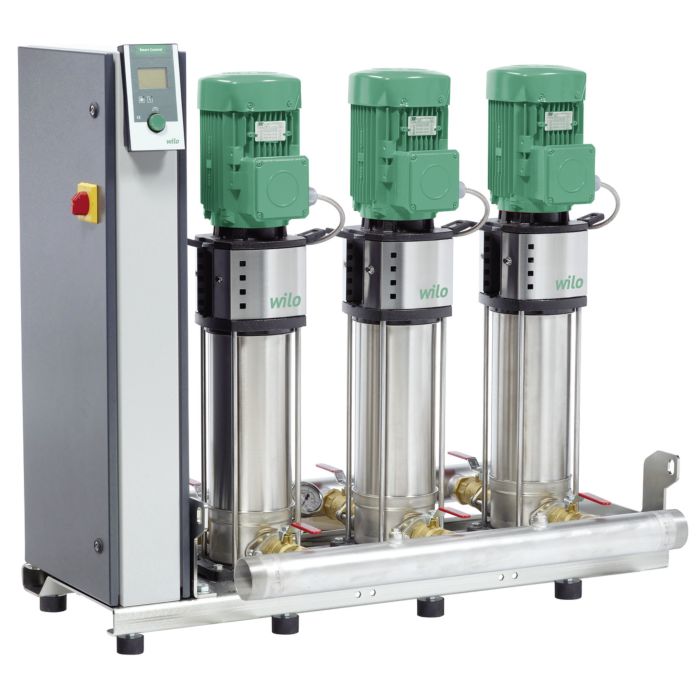

Wilo SiBoost Smart 2 helix booster system 2535996, V 608
Details
- Item number 2535996
Compact pressure boosting system according to DIN 1988 and DIN EN 806, for direct or indirect connection
Consisting of non-self-priming, parallel-connected, vertical stainless steel high-pressure centrifugal pumps in glanded design
Ready for connection with stainless steel piping mounted on the base frame, including control/regulating device with all the necessary measuring and adjustment devices
For fully automatic water supply and pressure increase in residential, office and administration buildings, hotels, hospitals, department stores and in industrial systems
For pumping drinking water, service water, cooling water, extinguishing water (except for fire extinguishing systems according to DIN14462 and with the approval of the local fire protection authorities) or other service water that does not chemically or mechanically attack the materials used and does not contain any abrasive or long-fibre components
- Stainless steel high-pressure centrifugal pumps of the Helix V series
- Base frame made of electrolytically galvanized steel with height-adjustable vibration dampers for structure-borne noise insulation
- Shut-off valve on the suction and pressure side of each pump
- Backflow preventer on the pressure side of each pump
- Diaphragm pressure tank 8 l, PN16 incl. flow fitting according to DIN 4807, pressure side
- Pressure sensor (4-20 mA), pressure side
- Manometer , print side
- Automatic pump control via fully electronic Smart controller
