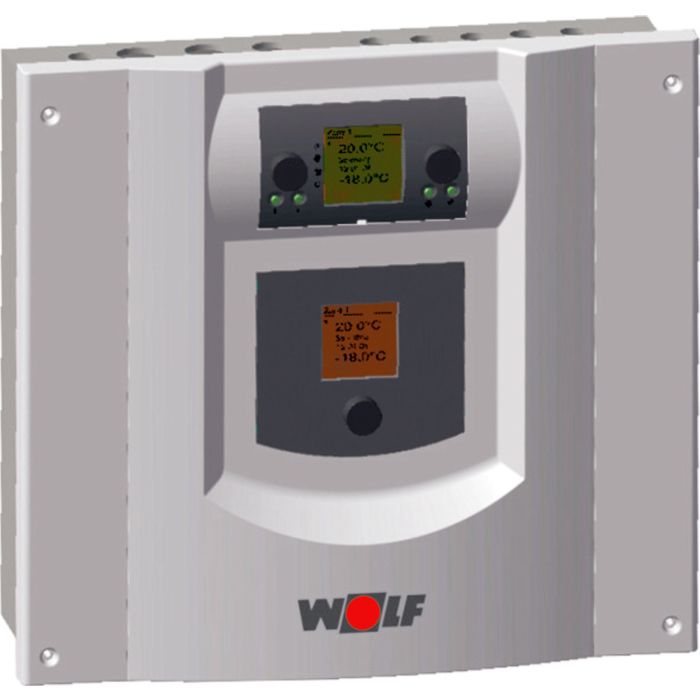

Wolf WPM 2000 heat pump manager 2744960
- Heat pump manager and weather-compensated control for Bathroom Heating -/mixer circuit
- Hot water and circulation with BM programming module (with outside temperature and mixer circuit sensor)
- optionally expandable with the WRS control system with eBus interface for additional energy sources
- e.g. solar
- Full graphic display with menu navigation
- automatic detection of the direction of rotation of the compressor
- Legionella protection function
- Activation of the circulation pump
- Screed heating program
- Error diagnosis program with error memory
- Fast charge function for water heating
- automatic summer/winter time function
- Heat quantity display of the current heating period and the previous day
- JAZ (annual work number) and TAZ (daily work number of the previous day) display possible when connecting the pulse signal from the on-site electricity meter with S0 interface. Configurable input for circulation button
- Lock HZ/WW
- External request ON/OFF or 1930 -10V from building management system BMS Configurable output for circulation pump (time control or button)
- alarm output
- swimming pool charging pump
- Potential-free contact for switching on a second heat generator
- Convenient commissioning thanks to predefined hydraulic schemes
- the entire heat pump system must be switched off with a maintenance main switch in the WPM- 2000
- Connection heat pump to WPM- 2000 ready to plug in " Wolf easy connect system" connection option for Smart grid or PV self-consumption
