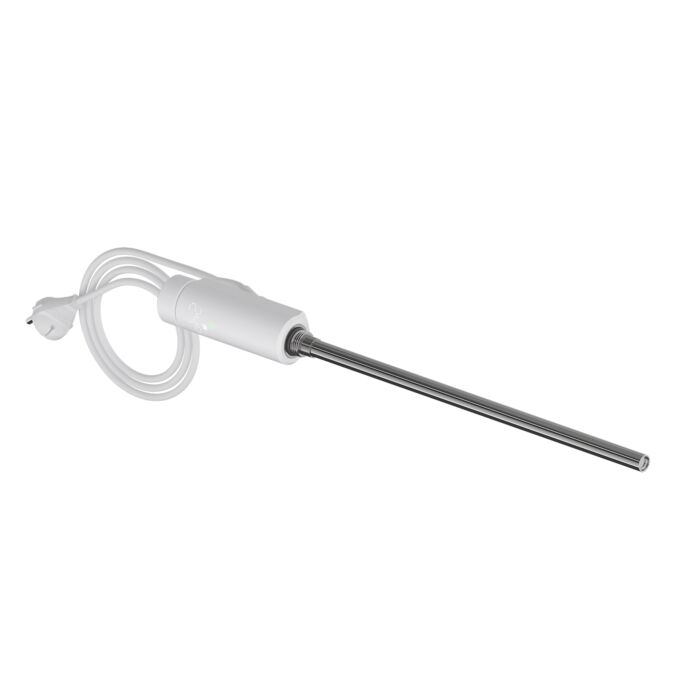

Zehnder heating element 858011
- With integrated control, the heating element features a modular operating concept.
- which is used as needed
- All basic functions, such as changing the temperature or using a timer, can be set directly on the heating element.
- The Easy control unit is also available.
- With the ehnder Connect app (available for iOS and Android operating systems) and the additionally available Connect Box, further operating options are available.
- which also offer additional setting options
- the uniform
- The intuitive user interface makes it easy to switch between the three operating modes.
- for even greater ease of use
- Variety of configuration options
- Heating element available in three housing colors
- Each with a color-matched cable and plug
- The heating element offers a limitation of the surface temperature.
- which is applied regardless of the selected mode
- Plastic housing Ø 40 mm
- Length 128 mm
- Rated power 300
- 600
- 900 or 1200 watts
- Mains voltage 230-240 V Protection class II
- Protection class IP 54 (splashproof)
- with 1/2" thread
- 2-core connection cable 1
- 20 m
- Downward exit with contoured connector in white
- grey or black (depending on case color)
- By pressing and turning the rotary knob, the different heating modes can be selected, for example.
- Temperatures are adjusted and configuration changes are made.
- Room temperature control (modes: frost protection 7 °C)
- Eco 7-19 °C
- Preset 16 °C
- Comfort 7-28 °C
- (Preset 21 °C)
- Eco and comfort temperatures can be set separately.
- Timer function (duration in 5-minute increments)
- Selectable from 0-95 minutes and in 1-hour increments from 2-4 hours
- (Default setting 60 min)
- Further configuration options: Hotel mode (in combination with switching via key card or switched socket)
- Selectable modes: Frost protection
- comfort
- Eco-Timer
- Comfort timer
- Timer)
- Surface temperature limit (45
- 55
- 65 or 80 °C)
- Open window detection
- Daily and weekly programs can be set via the Zehnder Connect app
- suitable for designer radiators Yucca
- Metropolitan
- Ribbon
- Quaro
- Subway
- Universal
- toga
- Forma
- Troy
- Zeno
